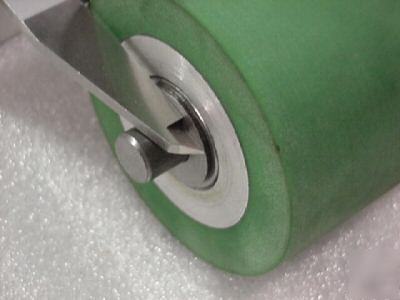

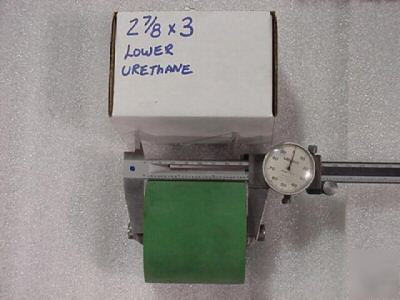

Exclusively Sold by Hoosier Pattern Inc CNC Precision Machined Urethane Lower Anvil Hardness is 75 on Durometer A Scale This is the Highest Quality Urethane Wheel Made If you’re going to do it, Do It Right! The Wheel Shown is Green, This is the same color as All of Our Urethane Lower Anvils. This Wheel is normally to Tip edges(Flanges) on your Panels. Tipping is done with a Thin Upper Wheel, Please Check Our Store for Tipping Wheels. Tipping is Extremely Fast and Accurate without Distorting your Panels Surrounding Area. Embossing is Awesome to see done, here is an example...Take a piece of Carboard cut to whatever Shapes you desire, Flames are used a Lot. Tape the Cut Out to the Underside Surface of Your Panel. Next using Your Standard Upper Wheel with a Urethane Lower Anvil Apply Enough Pressure to Your Machine to start the Embossing Process. In just a Few Passes you will start to see the Shape you cut Raising itself. If you want your embossing to Sink into the Panel put the Form on the Top of your Panel. This is an Easy Process to do, and if you want more or less Lift to your Embossing try thicker and Thinner Cut Outs. This Process can Also be done with a Urethane Upper Wheel and a Flat Steel Lower Anvil. * This Anvil has 1/2" Bearings Installed * Machined to 2.875 wide(we Include two Flat washers to get you to 3 Inches exactly). * Washers are used because with Force the Sides of Urethane Bulges (Goes back to normal after about 5 Minutes) * Machined Undersize to Keep from Binding Up in Your Yoke. Our Bearings have the highest Load Rate offered! © Copyright 1999 - 2008, All Rights Reserved Hoosier Pattern, Inc. Lakisharobbins@cedar--rapids.com If you want to speak with me direct call me toll free at 1-(***)-480-4870 between 7:00 a.m. till 4:30 p.m. Central Monday thru Thursday and noon on Friday and ask for Joe Andrews (3X3 urethane lower english wheel 1/2" bearings is the responsibility of Lakisha Robbins) |
Lakisharobbins@cedar--rapids.com (Lakisha Robbins) for more information.
