49” w x 8’ l chain driven live roller conveyor (4330)


49” w x 8’ l chain driven live roller conveyor (4330)

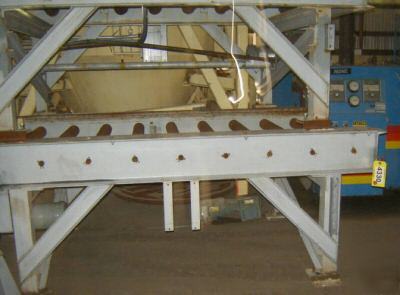

CHAIN DRIVEN LIVE ROLLER CONVEYORS

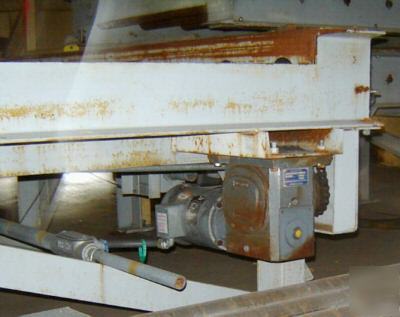

GEAR REDUCER BOSTON GEAR 50:1 RATIO.
MOTOR IS 1.5 HP BOSTON GEAR TOTALLY ENCLOSED 208-230/460 VOLT, 1725 RPM.
EFFECTIVE ROLLER WIDTH USABLE IS 49”. ROLLERS ARE 3.5” DIAMETER AND ARE MOUNTED ON 10.5” CENTERS.
LENGTH OF EACH CONVEYOR SECTION IS 8’. OVERALL WIDTH IS 5’. HEIGHT TO TOP OF ROLLER IS 34”.
UNITS ARE VERY HEAVY DUTY CONSTRUCTION.
SIDE CHANNELS ARE 10” CARBON STEEL C CHANNEL, LEGS ARE 4” CARBON STEEL ANGLE WITH 4” C CHANNEL CROSS BRACING.
UNITS ARE FOB MILLWOOD, WV 25262
