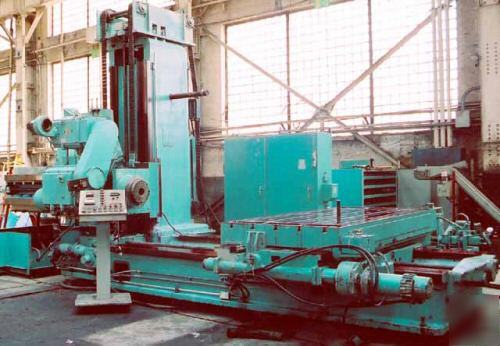

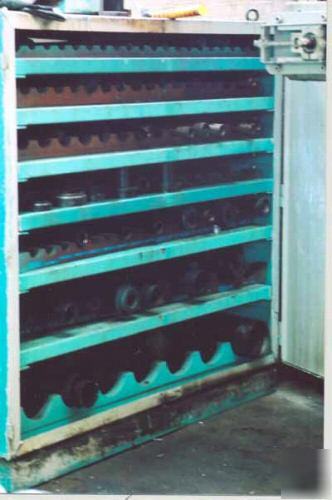

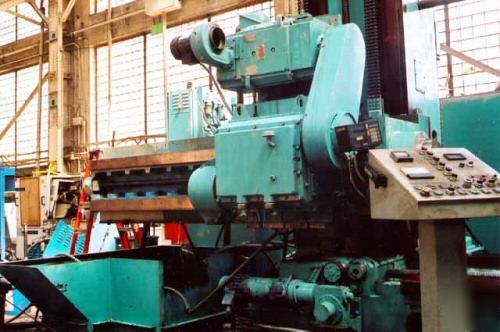

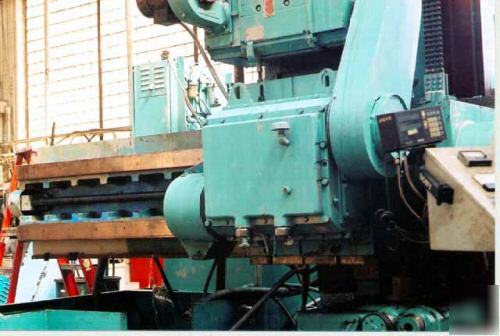

PHILLIPS WEH 1-7 000-60-75-1 SINGLE SPINDLE EJECTOR DRILL Philips Way Type Ejector Drill mounted on sellers table type boring mill base for 3-axis work positioning. Cleveland motion controls. Series 80 Digmaster spindle controller. 75 HP spindle drive. Getty's axis drive motors. Jog controls for W-axis in-out, X-axis left-right, y-axis up-down. LED spindle RPM indicator. Thumbwheel selector for spindle feed IPM. Load meter. Chip conveyor. Large quantity of drill tubes and sandvick type heads in heavy duty storage cabinet. Oil chiller. Hydraulic vertical counterweight. Model 25-750-120 hydraulic coolant supply and filtering system to supply coolant at 120 FPM, 500 PSI, 30 Micron filtration, rotary screw pump driven by 50 HP, 230/440/3/60 TEFC motor, filter pump model AVF 252/10 HP. Reservoir capacity is 750 gallons, 500 gallons of dirty oil settling area, 250 gallons of clean oil storage. Labyrinth settling tank and two banks of disposable cartridge type filters provide filtration. Drilling Range Solid Steel 1" - 7" Spindle Speeds (4 ranges) 0-1100 RPM Coolant Reservoir Capacity Dirty (Settling Area) 500 Gallon Coolant Reservoir Capacity Clean 250 Gallon Tooling Approximately 100, 36" Long Footprint 8'4" W x 19'L (+6') x 11'6"H (Phillips WEH1-7 000-60-75-1 single spndl ejector drill is the responsibility of Jesus Adams) |
