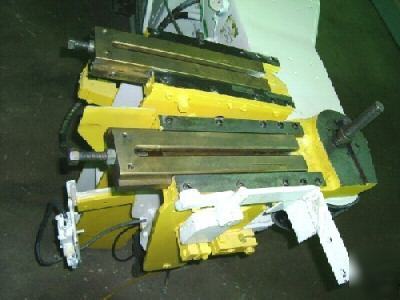

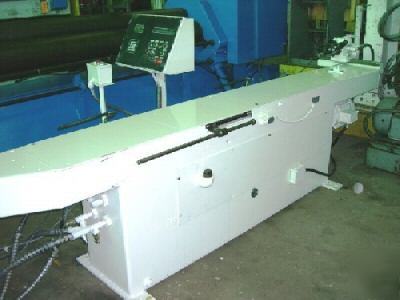

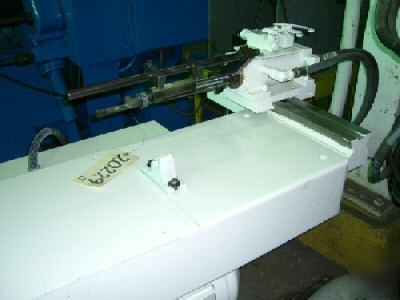

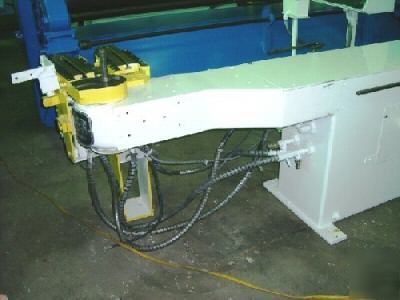

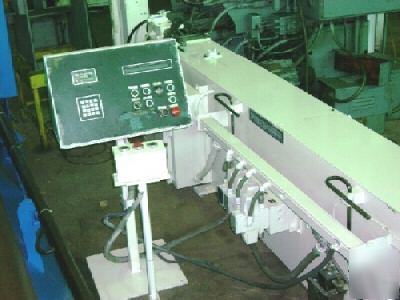

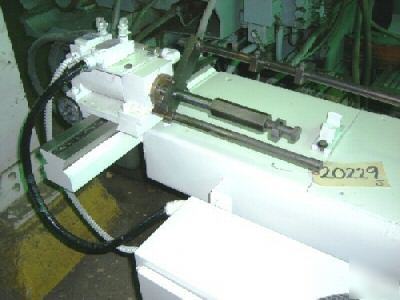

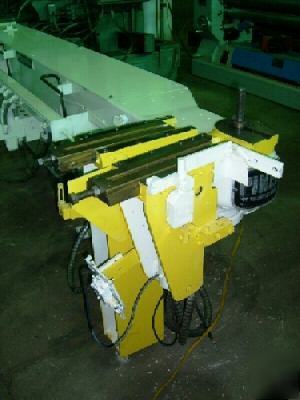

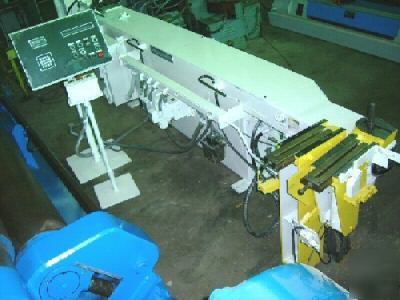

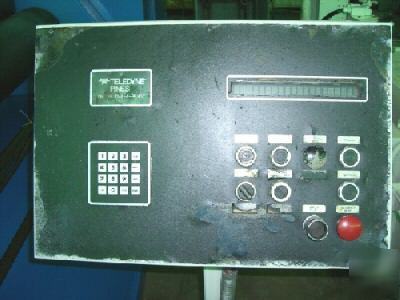

1-3/8", PINES No. 3/4, Digital Dial-A-Bend, Mandrel Extractor, 1987 Our stock number: 20229 SERIAL NUMBER: 11005-87085 Year: 1985 Maximum Radius..........................10" Maximum Tube Length Over Mandrel........9'11" Average Maximum Bending Arm Speed.......27 RPM Height From Floor to Centerline of Bending Form...........................35" Maximum Bend Angle......................180 Degrees + Overbend Bend Angle Accuracy.....................+ or - 1/4 Degree 5 HP Drive Motor & Electrical Controls I.P.S. Extra Heavy Pipe.................3/4" (Schedule 80) Non-Ferrous Tubing Y.P. to 12,000 PSI...1-1/2" OD x .093" Wall Non-Ferrous Tubing Y.P. to 25,000 PSI...1-1/2" OD x .065" Wall Steel Tubing Y.P. to 40,000 PSI.........1-3/8" OD x .065" Wall Stainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" OD x .065" Wall Steel Bar Round Y.P. to 40,000 PSI......3/4" Diameter Steel Bar Square Y.P. to 40,000 PSI.....11/16" Square Angle Iron Y.P. to 40,000 PSI...........1-1/4" x 1-1/4" x 3/16" Square Tube (Mild Steel)................1" x .065" Wall Rectangular Tubing (Mild Steel) E-Plane..1" x 1-1/4" x .065" Rectangular Tubing (Mild Steel) H-Plane..1" x 1-1/4" x .049" Approximate Weight.......................2750 Lbs. All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. **Skids shown in pictures are not included with the item. ** **All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. ** **We will load on a flat bed, open truck or trailer free of charge.** We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is consuelo-hinton@cedar--rapids.com (1-3/8" pines hydraulic rotary bender no. 3/4 (20229) is the responsibility of Consuelo Hinton) |
consuelo-hinton@cedar--rapids.com (Consuelo Hinton) for more information.
