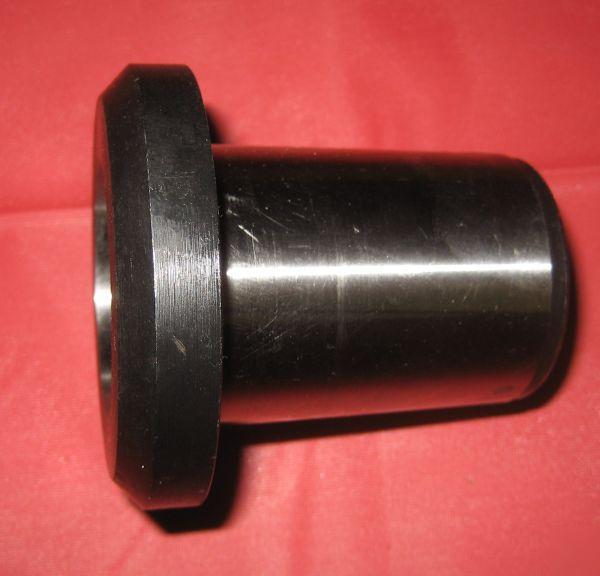

Tools4cheap own New 5c spindle adapter designed to fit the following South Bend lathes: Heavy 10" with threaded 2-1/4"-8 spindles (will fit the camlock spindles but your spindle protector wont fit, they made one with a smaller lip for them) 13" with 2-1/4"-8 spindles (same note as heavy 10 about camlock) 14.5 and 16 with 2-3/8"-6 threaded spindles. Hardened and ground and has pin to prevent collet from rotating Note: The outside taper is a specific taper to South Bend lathes. It does not directly correspond to a morse taper. These measure aprox 1.545" small end and 1.638" on large end. Southbend originally specd theirs at 1.629 so these are slightly larger/stick out a bit more. (aprox 1/4" from nose). I use one on my heavy 10 and it works great. * If you are exempt you will need to send me a properly filled out MA exemption form * If there is a problem, please contact me 1st and give me a chance to correct it * I fill out any custom forms honestly and will not devalue the price. * Remember you will be responsible for all Tax, Duty, Import and Brokerage fees. * All photos are taken of the actual items. Never stock photos from elsewhere. (New 5C spindle adapter for south bend 10 13 16 lathe is the responsibility of Matthew Mcmillan) |
