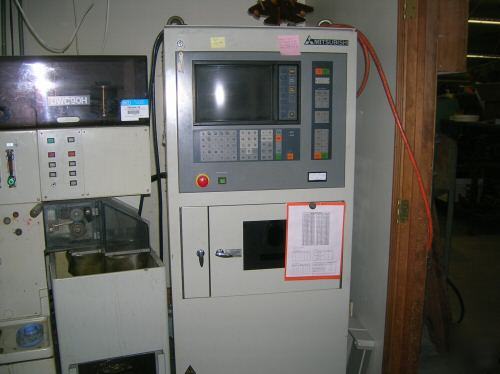

Mitsubishi DWC 90H WEDM, New 1988. Machine Unit Mitsubishi DWC 90H WEDM, New 1988. Espree 2005 on Pentium 4 computer included with license. Maximum Workpiece Dimensions: 350 x 400 x 160. Maximum Workpiece Weight: 385 lbs. Table Dimensions: 16.80" x 20". (w x d x h) 1755 x 1095 x 1775. Dielectric Fluid Reservoir (Common to all models). Water Purifier: Ion exchange resin (5l). Type: G25 (Built in Control Unit W7) Power Supply Circuit System: Transistor Pulse Circuit Maximum Machining Current: 18 A. Input System: Cassette Magnetic Tape, BTR (RS-232C) CRT Display: 14-inch color CRT Number of Control Axes: 5 axes ( X, Y, U, V, Z ) simultaneous. Setting Increment: 0.001 mm on each axis. Wire Offset: (+)-)999.999, offset numbers 1 to 40. RS-232C interface: DC System (DC1, DC3) Freight costs to be quoted at time of sale from zip code 06787. All freight costs to be paid by the purchaser. Should you have questions, please contact Joe at (***)-484-4449. Or email K-mendez@cedar--rapids.com (New mitsubishi dwc 90H wedm, 1988 w espree 2005 is the responsibility of Kay Mendez) |
K-mendez@cedar--rapids.com (Kay Mendez) for more information.
