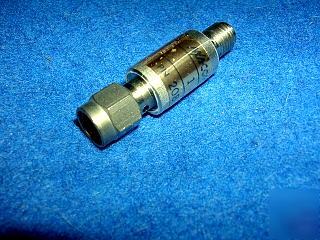

Frequency Range 1.0 - 15.0 GHz Flatness 1 ± 1.25 dB Open Circuit Voltage Sensitivity 1 1500 mV/mW Tangential Sensitivity 2 -52 dBm Output Capacitance 12 pF Typ. Video Resistance 1 1200 Ohms Output Polarity Negative Bias Current — 50 μA Nom. Temperature Range -50°C to +125°C Temperature Stability — ± 2.0 dB Maximum Power 100 mW CW 1. For RF power levels below –20 dBm, and with an open circuit load. 2. With video amplifier of 1 MHz bandwidth and 2 dB noise figure. 3. Finish is passivated stainless steel. 4. For Positive output change suffix to -13. (New omni spectra passive diode detector 1-15 ghz is the responsibility of Javier Mayo) |
