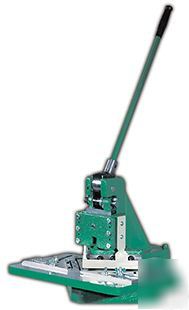

The Tennsmith notcher, Model 16-18, is a versatile, heavy-duty bench tool for shearing, notching and piercing work. The heavy cast iron construction allows the notcher to be used to side shear 6 inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction. Notches of more than 90° can be accomplished in two operations. The upper blades can be reversed for a "nose to heel" cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations. Optional box flange blades are available for reinforced box, pan and chassis corners. Front gauges and large surface, ground work table with inlaid scales are standard features. Capacity, Mild Steel............................... 16-18 Gauge Notch...................................................... 6"x 6" x 90 degrees Weight.................................................... 170 lbs New and in-stock. Email us with any technical questions you may have. Feel free to contact us @(***)-441-1527 or Email Us (New tennsmith 16-18 gauge notcher. usa made is the responsibility of Beulah Wise) |
