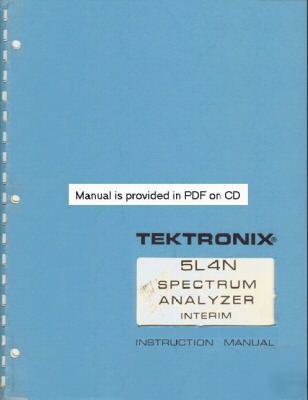

Tektronix 5L4N Interim Manual in PDF on CD Why settle for just one resolution? You get them both! For High Res page samples from this specific manual, click HERE. (No need to "email for samples," so no need to worry about getting sold to a SPAM list!) (Please read FAQ or "About Me" Page) All manuals (though not all application notes) we distribute are editable. These PDFs contain NO shareware beg letters! There are NO military manuals added to "beef up" the "volume count"! This manual covers the Tektronix 5L4N Low Frequency Spectrum Analyzer. It is scanned from the original manufacturer's "Interim" manual. "Interim" means the manual has general info & specifications, the schematics, the printed circuit board drawings, block diagram, interconnect chart, the electrical and mechanical parts lists, the operations section, the performance check and operational check sequences and instructions, and manual changes to 10-7-74. The interim manual specifically DOES NOT CONTAIN: calibration procedure, text circuit description, routine and corrective maintenance procedures, options, or mechanical parts info. However, this PDF set will be useful even to folks who already have or plan to acquire a complete "full" PDF manual (because of the presence of both A3 and A4 foldouts) or a paper copy of either the "interim" or "full" manuals (due to the text-searchability of the "resource resolution" copy). Here's a listing of what's on the disk: 5L4N_lg.pdf - 5L4N "Interim" Manual (printing resolution) 5L4N_sm.pdf - 5L4N "Interim" Manual (text search resolution) foldouts.pdf - A3 (17"x11") schem/drawings pages (printing res) foldouts_sm.pdf - A3 (17"x11") schem/drawings pages (fast res) tekscope_sm.pdf - interesting & informative articles PDF readme.txt - file descriptions AdbeRdr60_enu_full.exe - Acrobat v6 Two PDFs of the manual are provided, in two resolutions. One is: Text with Drawings at 600dpi black and white Schematics at 600dpi black and white Text with photos at 600dpi grayscale with contrast adjusted Any schematics, board overlays that have color notes at 600dpi 256 colors Foldout pages are supplied as 8-1/2x11" pages within the "main" manual for ease of printing, and are also supplied in a separate "foldouts.pdf" document at 17x11" for they who prefer them. The pages can be printed as needed or the information taken directly from the computer screen. The pages are completely readable and are fine for technicians and engineers who need service and operations information. Manual collectors, though, should search elsewhere, as any notes by engineering and technical personnel are retained in this document. The reproduction grade resolution looks nice, but for many purposes uses excessive resources. It's kind of like driving to work every day on a tractor. You can copy the large file to the hard drive in an attempt to achieve maximum performance, but it's certainly of no benefit to you to be required to do that. Therefore, while it's great to have the extremely high resolution PDF we provide for those times you need higher definition (such as printing), we include a second scan in standard resolutions for daily research and use on the bench. The second scan is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed. On the CD you'll receive the large "very high resolution" file, plus the smaller, faster and often more useable text-searchable version. ALL original manual pages are supplied. Some vendors proudly and loudly advertise page counts and file sizes, but since those counts and sizes are very often artificially inflated with advertising, shareware beg screens and/or blank pages, we refrain from joining them and instead assure you that these manuals are complete and are scanned in the specified resolutions. WE ARE THE ORIGINAL CREATORS OF THESE PDFs! 1. We didn't have to go through and remove digital signatures and etceteras, meaning far less chance of a missing page. 2. On the off-chance that you should find a missing page, we have the original paper copy and so can correct any errors. (Tektronix 5L4N interim service and operating manual is the responsibility of Maggie Hodge) |
m-hodge@cedar--rapids.com (Maggie Hodge) for more information.
