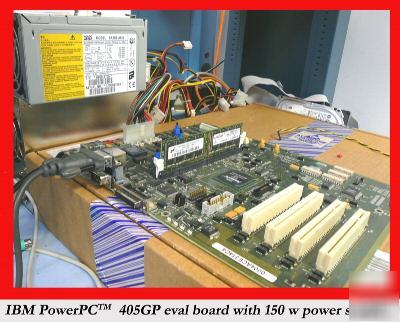

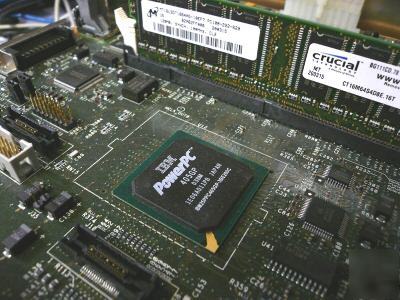

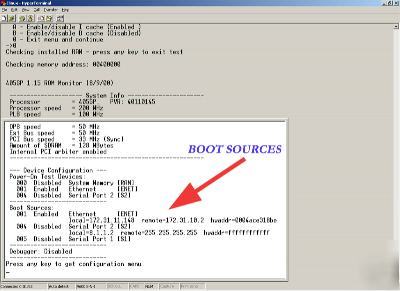

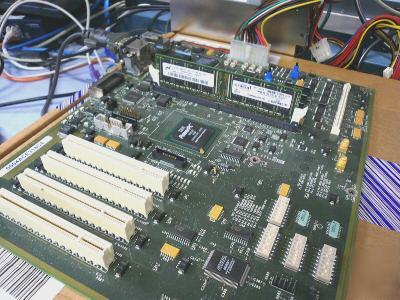

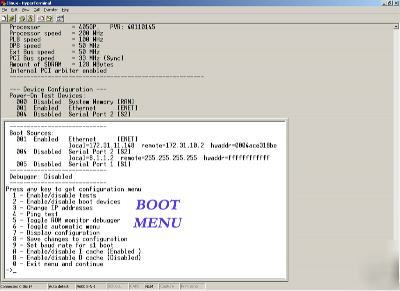

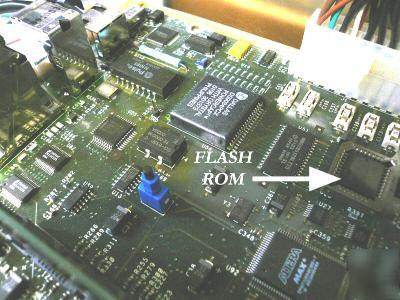

PRICE DROP!! Used to be $199.00. Get it now for only $130.00!! - Or, submit a BEST OFFER !! (comes without standard 150 w power supply and the serial cable ) = = = = = = = = = = = = = = = = = = = = = = = = IBM "Walnut" PowerPC 405GP Evaluation board FOR EMBEDDED LINUX DEVELOPERS FOR THE IBM PowerPC IBM "Walnut" PowerPC 405GP Evaluation board w/ 150 w power supply (No PC Case) * Serial cable provided (needed to hook up eval board to a PC running a Terminal Program - more details below) * 150 watt (20 Pin) Standard PC Power Supply (or equivalent with a higher power rating) * Micron MT8LSDT1664AG 128 MB SYNCH 100MHz CL2.0 * One flash eprom with a diagnostic routine (for those Software folks) * Source code for the diagnostic routines NOT included. * PLCC 4MB FLASH EPROM loaded with diagnostic instructions. On any Terminal Program, you will see memory tests, environment variable tests, com1 and com2 tests. (All this to prove that system hardware works and is alive, diagnotic tests passes) *** Evaluation board comes with one ethernet port, dual com ports, M II interface and four PCI slots. *** Using any RS-232 serial cable and any terminal program, (LINUX's Minicom app, for example) one can see the evaluation platform do self diagnosis check, memory check and then finally tries to boot up from the ethernet. ***** See screen captured photos below***** *** Terminal program will have to be initially set to comm parameters 9800-8-N-no hardware flow control. (Serial port cable - as shown in the pictures in this listing - is plugged into the TOP serial port. This is WRONG. Serial port cable should be plugged into the LOWER serial port. Our apologies.) *** IT IS NOW UP TO YOU, AS AN EMBEDDED LINUX SYSTEM DEVELOPER, TO: [1] Decide which main line kernel you will use. [2] configure your own Makefile. [3] develop your own bootloader and program the resulting image unto the flash device on the board - initializing architecture specific registers on the board. [4] configure and build your own version of your kernel. (selecting services that you want and not selecting services that you don't want) [5] develop device drivers that you might need. [6] develop your embedded linux application. We want to stress these facts: [1] You have to have your own tools, compilers, debugger, emulators and FLASH EPROM programmers. [2] We do not supply these, neither do we provide tutorials and technical support on code developement. [3] Neither do we supply any associated LINUX KERNEL and BOOTLOADER. ** Not for the casual programmer ** [1] Guaranteed 405GP evaluation board EXCHANGE for DOAs. In the unlikely event of a DOA, send it back to us within 14 days and we will exchange the DEAD merchandise with another 405GP evaluation board upon receipt of the merchandise. [3] Item #1 above applies ONLY to DOAs. If the 405GP motherboard does the diagnostic routines properly, without hanging, with the FLASH PROM I provided - that is as good as it gets. This is MY criteria of a PASS/FAIL of the 405GP Evaluation board. [4] If system misbehaves with any other FLASH PROM (with a different hex file content) , then, obviously, failure is software related. In this case, it isn't considered a DOA. We want to make sure that you get your merchandise in good, working order !! (Above only true for United States destination addresses - No tracking numbers for Canadian destinations) Some key websites to consider regarding developing embedded apps for the PowerPC: http://www-128.ibm.com/developerworks/power/pek/ http://www-128.ibm.com/developerworks/library/pa-pek/ http://lwn.net/2001/0524/a/rtlinux.php3 http:// /articles/bsd_on_power http://dev.mvista.com/projects/405gp_status/index.html http://ozlabs.org/pipermail/linuxppc-embedded/2000-March/000943.html http:// /HOWTO/NC-HOWTO-6.html You can always use our friend http:// (Ibm walnut amcc powerpc 405GP evaluation board with ps is the responsibility of Lesa Bates) |
LesaBates@cedar--rapids.com (Lesa Bates) for more information.
