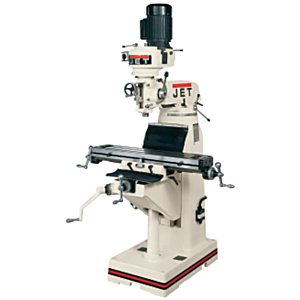

JVM-836-1 Vertical Milling Machine with X Powerfeed JVM-836-1, 8" x 36" Table, R-8 Taper, 1-1/2HP, 1Ph, Prewired 115 Precision bored and honed milling head Large diameter quill is chromed High precision spindle bearings Over 10" of front to back ram travel Hardened and ground precision table Precision ground dovetail ways This small mill has all of the Feature found on our larger mills, but sized for the home shop, repair shops or small maintenance shops. Distance Spindle to Column (in.) 15-3/4 Distance Spindle to Column (min./in.) 5-1/4 Head Movement (deg.) 90° R & L Max Distance Spindle to Table ( in.) 13-3/4 Note Use of static phase converter will void warranty Overall Dimensions 55 x 52 x 78 Range of Spindle Speeds (RPM) 120–1,550 T-Slots Number and Size (in.) 3 and 5/8 Table Cross Travel (in.) 9-1/2 Table Longitudinal Travel (in.) 22-1/4 Table Size (in.) 7-7/8 x 35-3/4 Work Table Weight Capacity (lbs.) 500 We require a physical address on all items Ajax E-Bay store supplies the full line of JET Products. Need any help looking please call. (Jet vertical milling machine 836-1 x-powerfeed #690036 is the responsibility of Tonia Allen) |
