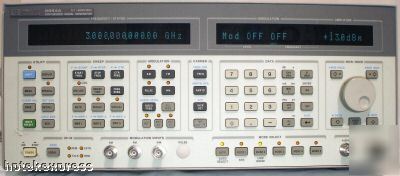

Your Source for Quality Reconditioned Test Equipment. We are the best VALUE in test and measurement! HP 8664A-001-004-010 3GHz High Performance Signal Generator 100 kHz to 3000 MHz, -140 dBm to +13 dBm , GPIB Check out our other great test equipment Description: The HP 8664A is an extremely high performance programmable signal generator that is ideal for all in and out of channel receiver testing. They have exceptionally good phase noise and spurious specifications. Absolute level accuracy is ± 1.5dB with an output level capability of +13 dBm at 3000 MHz. AM, FM, and Phase Modulation capabilities include two internal variable frequency sources with Sine, White Noise, Triangle, Sawtooth, or Square waveforms. These internal modulation sources provide extreme flexibility in waveform creation such as Avionics VOR and ILS. Several frequency or power sweep modes are available. Amplitude range -140 to +13 dBm Frequency Range from 100kHz to 3000 MHz with 0.01 Hz Resolution Two very flexible internal variable frequency modulation sources -122 dBc/Hz phase noise at 3GHz with a 20kHz offset Non-harmonic spurious level < -100dBc Option 001 High Stability Oscillator Option 004 Low Phase Noise Option 010 Ultra Low Leakage Condition: Reconditioned and Performance Tested to meet manufacturers specifications. Clean unit inside and out. Physically inspected, hardware re-torqued, connectors treated with a preservative, controls and switches lubricated as appropriate, power supply electrolytics tested, battery replaced. Burned in for 72 hours and then performance tested. All knobs and switches are in good condition. There are a couple of marks on the front panel near the power switch. What do our grades mean? Click Here Please contact us prior to purchasing an item if you have a question. We're glad to assist in any way we can. Calibration is not guaranteed unless the item is advertised as calibrated or you purchase calibration at the time of sale. We maintain a laboratory with high quality equipment in order to verify the performance of the items we sell. We can provide ANSI Z540.1 calibration services on most items sold, if desired. Please contact us for Repair, Reconditioning, or Calibration services. * Item may have some cosmetic imperfections such as scratches, dents, cracks, sticker residue, and discoloration due to normal wear and tear. Every effort is made to make our items as cosmetically acceptable as possible. Abnormal cosmetic conditions are mentioned in the item condition. (Hp 8664A 3GHZ signal generator options 001,004,010 good is the responsibility of Brigitte Phelps) |
Bphelps@cedar--rapids.com (Brigitte Phelps) for more information.
