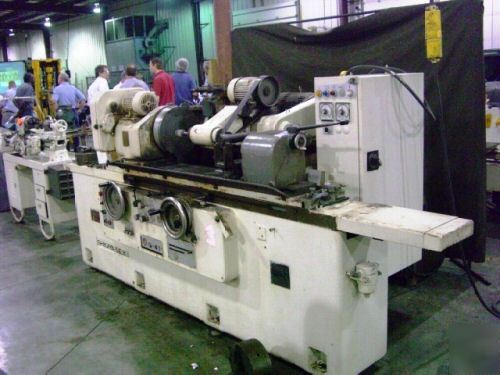

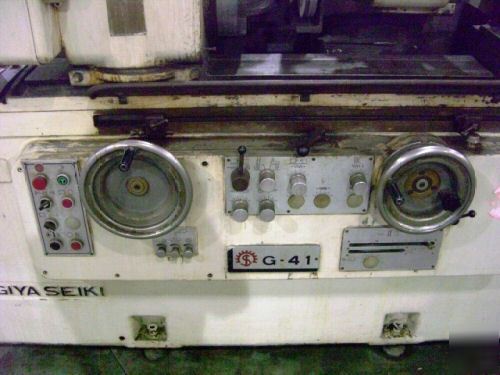

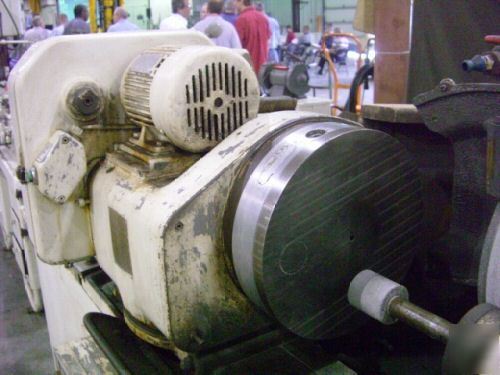

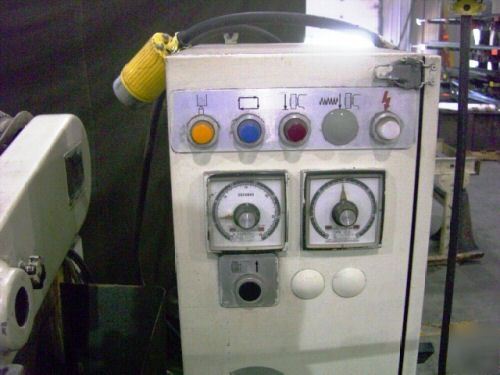

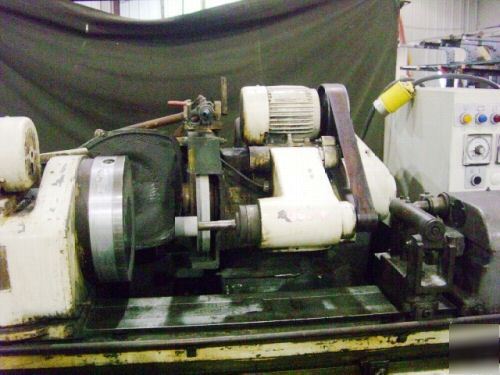

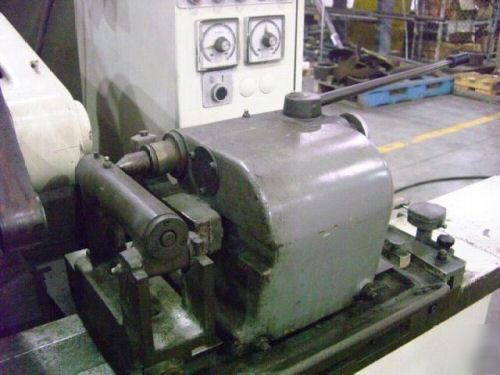

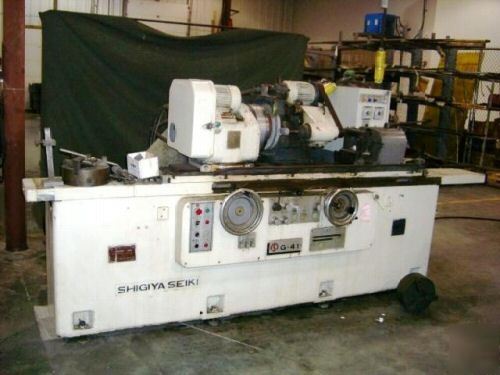

16" x 36" SHIGIYA SEIKI MODEL GUA-41-100 UNIVERSAL OD/ID CYLINDRICAL GRINDER Motor Driven With 5 HP, 3-Phase, 60 Cycle, AC Motor and Controls. 1/2HP Work Drive. 1HP Hydraulic System. MD Lubrication MD Coolant & Tank with Magnetic Chip Separator. EQUIPPED WITH: Drop Down Internal Spindle. Plunge Feed and Sparkout. Fine Feed. Live & Dead Workhead. Tailstock. 6" Permanent Magnetic Chuck. Dust Collector. Standard Grinding wheel Dia. 14"x1.25"x5" Handle Feed One Revolution 0.04" Max. Automatic Infeed Stroke ~0.03" Automatic Continuous Infeed Speed Up To .1 IPM Spindle Rotation, Swivel 120 Degrees Spindle Speeds (9 By Belt Change) 13-252 RPM Hydraulic and Lubricating Oil 14 Gal (16" x 36" shigiya gua-41-100 cylindrical od/id grinder is the responsibility of Gilda Mays) |
GMays@cedar--rapids.com (Gilda Mays)
for more information.
