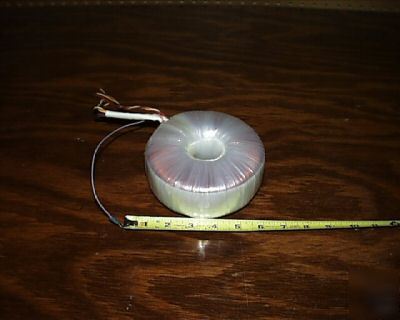

This is a low noise, low leakage current, dual primary/dual secondary power/isolation transformer with a Faraday shield between the windings. S#20/12" 0V WHITE BROWN 0V S#20/12†S#20/12" 100V BLUE UO = 128.9V RMS S#20/12" 0V ORANGE A/R THERMAL FUSE 120ºC S#20/12" 100V RED YELLOW 120V RMS / 200VA S#20/12†S#20/12" 120V BLACK VIOLET STATIC SHIELD S#20/12†PRIMARIES ARE INSIDE A SLEEVE. Primaries must be connected together in series or in parallel. LEADS: S=Multistranded Lead wire. Length tolerance: +/- 1/2". Manufacturing tolerance is +/- 3%. NOMINAL SUPPLY: 100/120/220/240V +/-10% RATED PRIMARY CURRENT: 4.4/3.6/2.0/1.8A TEMP. RISE AT RATED LOAD: 61ºC DIMENSIONS/WEIGHT: MOUNTING: CORE DATA: OD = 5.6" WASHER/PADS = 110 M.M. CORE # 900393 H = 2.5" THICKNESS = .08†NO-LOAD LOSS = 2.0 W WEIGHT = 7.5 LBS. HOLE DIAMETER = .32†NO-LOAD AMPS = 19 mA Dimensions stated above are nominal. Tolerance is 10%. Transformer is UL recognized to UL544 and UL 2601-1. CSA certified to CSA C22.2 No. 66 and TUV certified to EN60601 and EN60742. CE compliance. Class B insulation. SPEC DATE: 06/15/05 (304002) (904.1202) (Low noise toroidal power/isolation transformer is the responsibility of Noelle Hart) |
