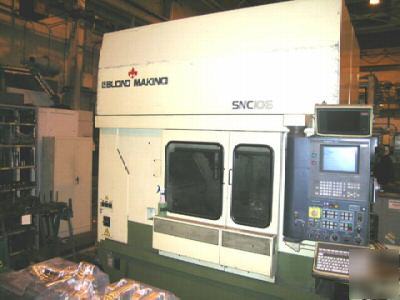

Liberty Machinery Company You are looking at a 39"X, 23.6"Y, 15.7"Z, LeBlond Makino SNC106-A5, Graphite Package, Professional A CNC Serial No. SNC106-A5Condition - UsedNew - 1995 SPECIFICATION:Spindle Head Longitudinal - X-Axis 39.37" (1000 mm) Spindle Head Lateral - Y-Axis 23.62" (600 mm) Spindle Head Vertical - Z-Axis 15.75" (400 mm) Distance from Spindle Gage Plane to Table Surface 11.8 ~ 27.5" (300-700 mm) Table Loading Capacity - Maximum 2,205 Lbs. (1000 kg) Spindle Speed (Air Cooled, Pressurized Spindle) 200 - 15,000 RPM Spindle Taper Hole 7/24 Taper No. 40 Spindle Tool Power Clamp Disc Spring Clamp Spindle Orientation Electric Servo Type Spindle Drive Motor (AC) 2.9/5.0 HP Floor Space Required 199" x 162"(5075 x 4145mm) Approximate Machine Weight 16,500 Lbs. (7400 kg) Automatic Tool Changer Type of Tool Shank 40T (JIS B6339) Type of Retention Knob (Special) MAS P403T-1 (30 Deg.) Tool Changer Time (ATC5 Tools, Tool to Tool) 15 s Tool Diameter - Maximum 3.5" ( Dia. 90 mm) Tool Length - Maximum 11.8" (300 mm) Tool Weight - Maximum 17.6 Lbs. (8 kg) EQUIPPED WITH:Makino Professional A, CNC Control NC System, DLOG (D Net PC) System Table Load Unload, Manual Shuttle System 5-Position Automatic Tool Changer Amano Hi-Performance Dust Collection System Air Flow Rate with a Max. of 14000 L/Min (at atmospheric pressure) Filter is 2 pieces cartridge Type (Automatic Reverse Flushing) Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting Photobucket - Video and Image Hosting (Leblond makino SNC106-A5 machining center vertical cnc is the responsibility of Jimmy Bean) |
jbean@cedar--rapids.com (Jimmy Bean)
for more information.
