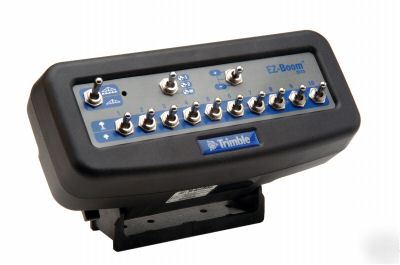

PAT Inc. has been awarded the GLOBAL Sales Award for the Second Straight year for Selling more EZ-Products than any other Deal with the Proven Experts not a Parts Counter Discounter CAll PAT Inc. @ 1-(***)-531-2887 for Special EZ-Boom Pricing Ask for Ian our EZ-Boom Specialist or e-mail to Ian@patinc.info Or go to www.patinc.info for more information The EZ-Boom 2010 works with the Trimble AgGPS EZ-Guide Plus lightbar guidance system, AgGPS EZ-Steer Assisted steering system and AgGPS Autopilot automated steering system. AgGPS EZ-Boom adds value to these Trimble systems by: * Controls most liquid applications. * Automatic boom section on/off control. * Controls up to 10 boom sections. * Replaces many popular controllers on the market today. * Raven 440/450/460/660 harness plugs directly into the EZ-Boom. * Works in conjunction with most Raven consoles for automatic boom section control. * Adaptor kit available for replacing Raven 4400 & 4600 consoles. * Valves/Flow meters supported include Raven, TeeJet, Mid-Tech, Dickey John. * Rate-1 and Rate-2 selection switch. * +/- switch for adjusting rate. * Manual setting for independent valve control. * Vehicle configuration through EZ-Guide Plus LCD screen. * Boom status indication is displayed on the screen of the EZ-Guide Plus. * Display pressure on the screen of the EZ-Guide Plus. * Calculates total applied area. * Add the EZ-Steer assisted steering system for hands free steering. * Automatically controlling up to 10 separate automated boom sections, avoiding overspray and untreated gaps on angled end rows, terraces, waterways and other no-spray areas electronically "flagged" within a field. EZ-Boom also calculates total applied area, automatically subtracting no-spray areas, so the applicator knows exactly how much spray has been used. * Delivering precise rate control field reducing the application cost of the chemical, and maximizing the performance of the application—no more empty tank with two rounds to go! EZ-boom uses signals from the flow meter and GPS speed to automatically adjust flow rate. By using the GPS for accurate speed measurement the need for ground radar is eliminated. This reduces operator distraction and ensures the best-possible application job. * Simplifying installation and reduces equipment costs for spray systems EZ-Boom 2010 works in conjunction with, or replaces most currently available rate controllers. So if it's time to replace your "old faithful" system or upgrade it to automatic boom section control, the AgGPS EZ-Boom 2010 system—along with an AgGPS EZ-Guide Plus or AgGPS EZ-Steer system—will help you do the job at a highly competitive price. EZ-Boom automatically performs several critical functions that help save chemicals while protecting crops and the environment—and does them far more accurately than is possible with any human operator. The new AgGPS EZ-Boom 2010 system also helps protect operators against claims of improper or incomplete application, providing peace of mind that they've done the best application job possible. Growers have three options for installing the new EZ-Boom 2010 system to interface directly into flow meters and valves, depending on existing equipment and desired performance features. Those familiar with Trimble EZ-systems will require about 15 minutes to learn how to operate of the AgGPS EZ-Boom 2010 automated boom switching and spray rate controller system. Performance highlights: * Makes application operations more effective and economical... saves input costs by reducing over and under application of fertilizers and crop protection chemicals * Precisely applies target rate across the entire field to ensure best-possible application job * Works with many popular spraying systems * Reduces operator stress by eliminating need to monitor pressure gauges outside the cab * Easy-to-learn... in about 15 minutes for those familiar with basic GPS tools such as the AgGPS EZ-Guide Plus lightbar guidance system or AgGPS EZ-Steer assisted steering system. What is a boom section?A boom section is a number of nozzles connected to and controlled by a single valve. Boom sections canvary in length and are often the same spacing as the folds or hinged portions of a boom. Can I configure boom sections to work on my existing boom?Yes, but you also need boom valves. If your sprayer is not equipped with these valves, they can be How many boom sections can the EZ-Boom system support?The EZ-Boom system supports a maximum of 10 boom sections. However, if the sprayer also has fencerow nozzles fitted, the EZ-Boom system can be configured to support up to 8 sections and 2 fence rownozzles. Can I use the EZ-Boom system with my existing rate controller?Yes, the EZ-Boom system can be used for automated boom section control while the existing rate controller can be used for controlling the rate. The supported rate controllers also detect when a boom section has been turned off or on and control the rate accordingly. You can purchase an adapter cable that enables the EZ-Boom system to be connected to the sprayer at the same time as the existing rate What components does my sprayer need to use the EZ-Boom system?Your sprayer needs the following components to work with the EZ-Boom system: Rate control components• Flow Control valve: This opens or closes to maintain the required application rate. The following control valves are supported; Inline Servo, Bypass Servo, Pump Servo, and PWM. • Flow meter: This monitors and sends information to the EZ-Boom system about the amount of fluid flowing through the sprayer system. The EZ-Boom system uses this information to calculate the user-defined application rate. • Pressure sensor/ transducer (optional): This shows the current system pressure on either the EZ-Guide Plus or FieldManager display. Boom Section control components• Boom valves: These valves are used to turn on and turn off flow to different sections of the boom. How many applications (products) can the EZ-Boom system control?EZ-Boom can control a single product of either liquid or anhydrous material. (Aggps ez-boom spraying system is the responsibility of Lucile Fowler) |
L-fowler@cedar--rapids.com (Lucile Fowler) for more information.
