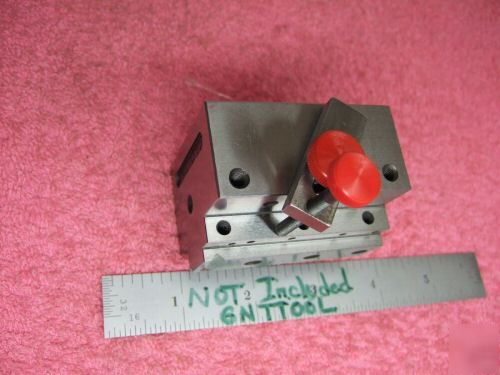

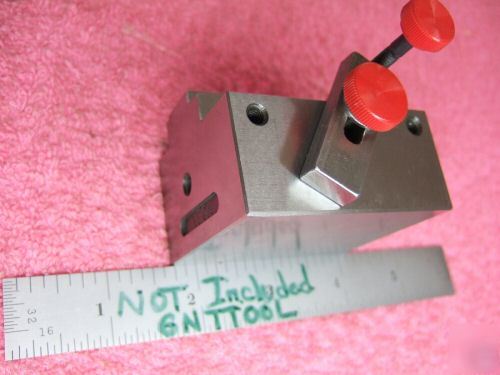

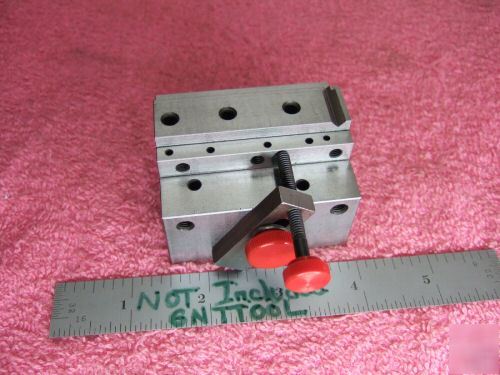

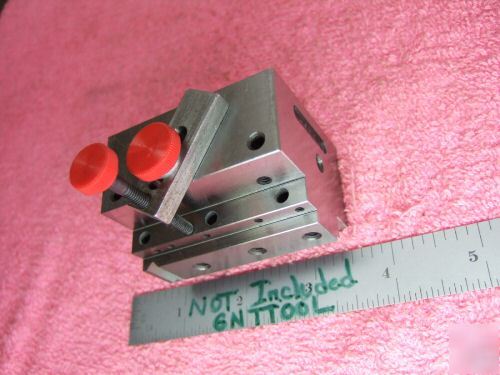

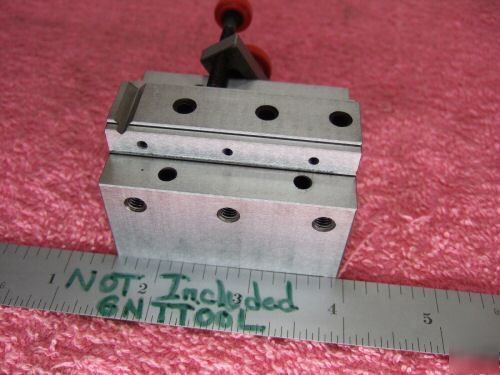

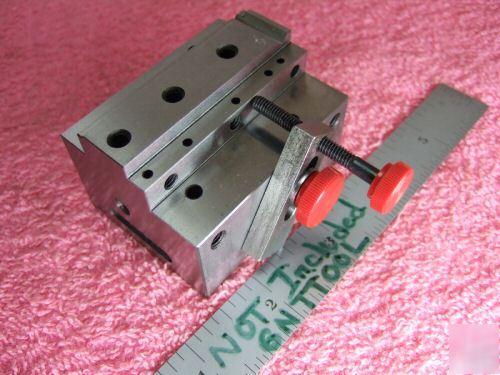

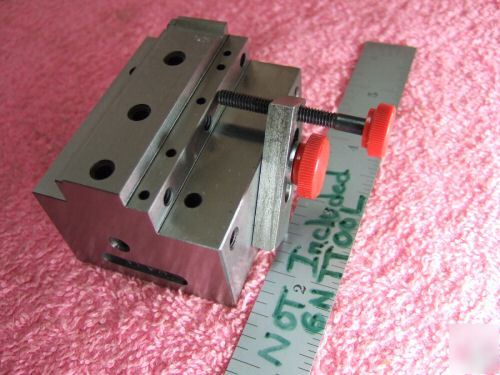

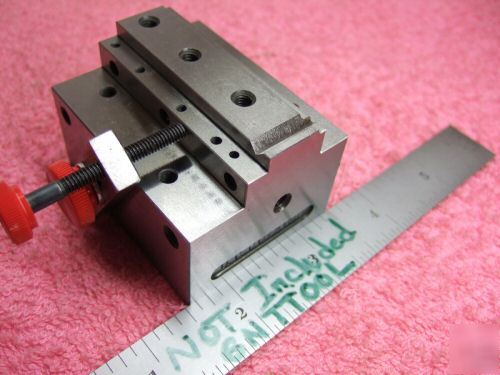

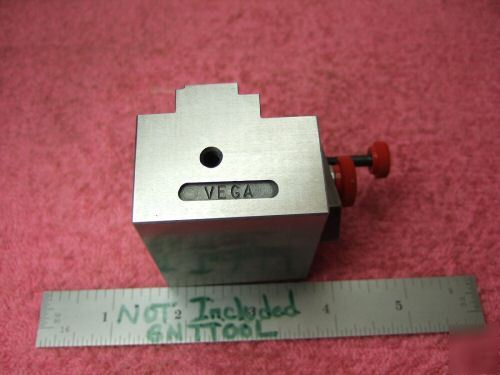

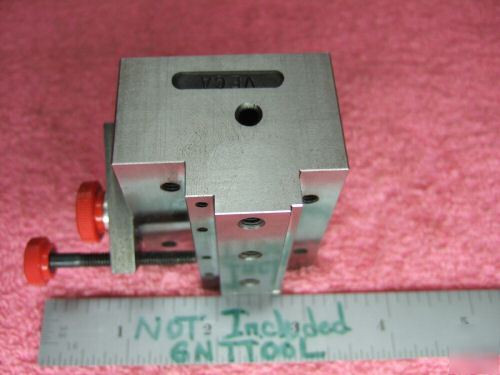

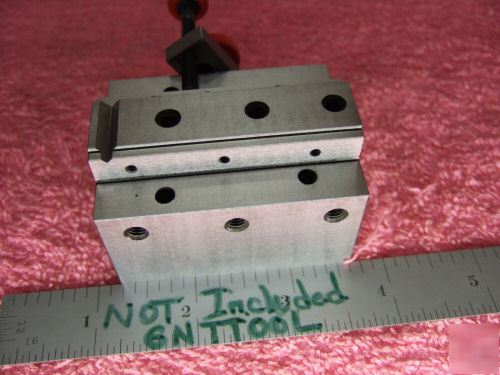

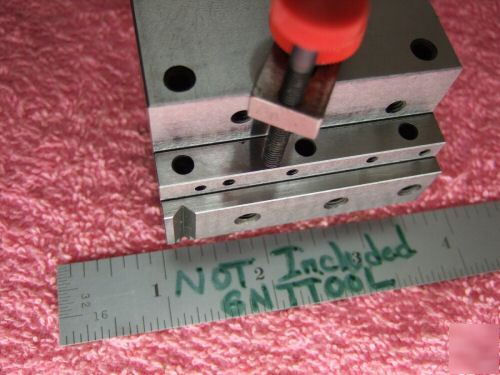

BLOCK MEASURES 1.94" WIDE WITH LENGTH OF 2.438" AND 1.602" TALL. EACH BLOCK HAS (18) TAPPED HOLES #10 X 32 AND (7) TAPPED #4 X 40 HOLES AS SHOWN. THERE ARE (4) STEPS AND (1) VEE 3/16" APPX IN THE TOP AS SHOWN. STEPS MEASURE CLAMP SIDE .473" TOP DOWN X .603" , SECOND STEP IS .16" X .229", THIRD STEP ON SIDE OPPOSITE CLAMP SHOWN IS .351" FROM TOP DOWN AND .417" TO 4X40 HOLE SURFACE. VERY SMALL STEP ON SAME SIDE IS .043" FROM TOP DOWN AND .098" WIDE AS SHOWN. ALL EDGES PRECISION CHAMFERED AS SHOWN AND IN MINT CONDITION SWEET SWEET TOOL!!! BLOCK WAS STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS. NR U. S. A. THE BEST IS HERE! SEE PICS. Questions? Contact us LinaAndrews@cedar--rapids.com (Grind cube clmp machinist/toolmaker, hardened #10X32-18 is the responsibility of Lina Andrews) |
LinaAndrews@cedar--rapids.com (Lina Andrews) for more information.
