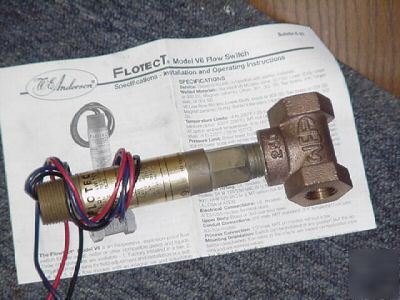

THIS AD IS FOR 1; BRAND NEW !!! DWYER / W.E. ANDERSON FLOTECT TYPE V6EPB SERIES BRASS FLOW SWITCH !!! PT# (V6EPB-B-S-1-B), SPECS; 1/2" NPT, Standard V6 Series Flotect® Flow Switch Brass Housing with DPDT Snap Switch Economical and Dependable Flow Switch Monitor Flow in 1/2" to 2" Pipe Explosion Proof & Leak Proof Body Surprisingly compact, the Series V6 Flotect® Flow Switch is engineered to specifically monitor liquid, gas, or airflows. Operation is simple and dependable with no mechanical linkage as the flow switch is magnetically actuated. The lower body holds the flow vane and one magnet, which controls the switch actuating magnet in the separate upper housing. In most applications the switch is normally off with the pipeline flow forcing the vane against the vane spring. As the flow decreases the vane spring pushes back the vane, actuating the switch to signal an alarm or shutdown. Tees are available for installation in pipelines from 1/2Ë to 2Ë, with bushings added the unit is easily adapted to 1/4Ë and 3/8Ë piping. Service: Liquids, Air or Gases Choice of models in a tee with calibrated vane or field adjustable trimmable vane Wetted Material :Check Model Number Switch Type: SPDT snap switch standard, DPDT snap Switch Optional. Leak Proof lower body machined from bar stock Enclosure: Explosion and Weather Proof Pressure Ratings: High pressure rating of 1000 psig with brass body and 2000psig on the 316 body Conduit Connection: 3/4" Male NPT Standard, 3/4" female NPT on junction box models Process Connection: 1/2" male NPT on models without Tee's. Available Standard V6 Series Flotect® Flow Switch V6EPB-B-S-2-B-MT flow switch; brass upper housing, brass lower housing, brass tee with 3/4" NPT connections, SPDT snap switch, and high temperature option Low Flow Model (1/2" NPT connections) (For LF Model no tee material chosen, tee material matches lower housing choice) V6 Set Point Charts - Factory Installed Tee Popular Models with Brass Housing and DPDT Switch ..............................................*** .. THANK YOU AND GOOD LUCK !!... (Dwyer anderson flotect (V6EPB -b-s-1B) 1/2" flow switch is the responsibility of Marion English) |
marion-english@cedar--rapids.com (Marion English)
for more information.
