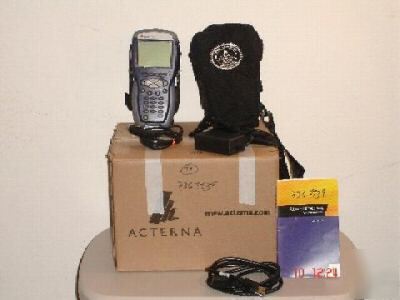

Handheld Triple Play Field Meter DSAM-2500 Handheld Triple Play Field Meter The DSAM is the industry leading high-speed data installer meter that enables increased numbers of cable modem installs per day. All-in-one meter includes DOCSIS/EuroDOCSIS service testing and Signal Level Meter (SLM) features. NEW - Increased throughput on DOCSIS 1.1 hardware – up to 15MB downstream Autotest capability with administration security. Environmental resilience and robustness. Extensive help system directly linked to meter capabilities. Digital carrier performance with Quick QAM summary of MER/EVM and pre/post FEC BER. Pre-configured automated tests for digital, analog, and DOCSIS channels. Increase field efficiency with an optional browser interface, over the DOCSIS RF link to your workforce management system using the IAS-100 Instrument Application Server software. NEW – QAM Ingress (DSAM-2600/3600/6000B – 6MHz units only) NEW – Sweepless Sweep: Standard on the DSAM-6000; Optional on DSAM-3500/3600 NEW Enhanced Downstream Spectrum (Low Pass Filter, Resolution B/W (30KHz), Dwell time (1-25 ms), 4MHz – 1GHz NEW – Errored Seconds (ES) and Severely Errored Seconds (SES): DSAM-2500 and Up Only NEW – HUM for either 60Hz or 50Hz Power Grids DOCSIS, versions 1.0 and 1.1 based. Optional PacketCable VoIP test capability. 4 to 1000 MHz range; 8 MHz and 6 MHz models. Weather and shock-resistant enclosure. Weighs less than 3 lb (1.4 kg). Analog and digital signal level capabilities. (Handheld triple play field meter dsam-2500 testing is the responsibility of Whitney Fletcher) |
