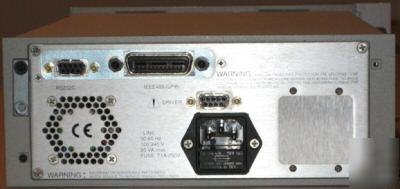

JDS Uniphase SB Fiber optic Switch 2X8 Operation of these switches is based upon JDS Uniphase's proven expanded beam lens technology, which utilizes a precision stepper-motor to align optical channels. The use of collimating lenses minimizes insertion loss and improves repeatability and performance. Internal temperature control of the switching mechanism ensures excellent operational stability. This unit can be used in Fiberoptic component testing and measurement, System testing and Research and development. * System Configuration: C, The 2xN configuration allows a single common input to be switched to any of the outputs * Wavelength range: 1270-1670 nm * Insertion Loss: 0.4 dB (Typical), 0.7 dB (Maximum) * Return loss SM standard/analog: = 65 dB, 60/65 dB * Polarization dependent loss SM: 0.02 dB, 0.05 dB * Insertion loss stability: ± 0.03 dB, ± 0.05 dB * Sequential switching: ± 0.003 dB, ± 0.005 dB * Random switching: ± 0.01 dB, ± 0.025 dB * Crosstalk (maximum) SM: - 80 dB * Maximum input power (optical): 300 mW * Control local and remote via GPIB and serial RS232 interfaces This item is in excellent condition, working perfectly. * Virginia sales will be charged appropriate sales tax. Please email therese-dotson@cedar--rapids.com or Call +1 (***)-932-2603 (Jds uniphase sb fiber optic switch 2X8 is the responsibility of Therese Dotson) |
