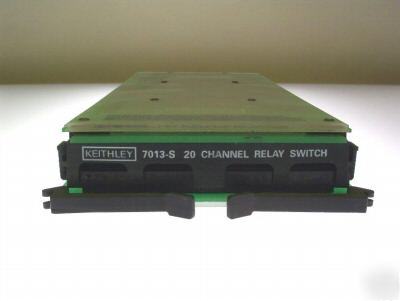

The 7013-S has screw terminal connector. This isolated switch card contains 20 independent channels that can be connected in a wide variety of configurations. Each channel is 2-pole. The isolated switch configuration provides the greatest flexibility because the switches can be connected as needed. Both sides of each 2-pole relay are available for connection. RELAY SWITCH CONFIGURATION: 20 independent channels of 2-pole switching. CONTACT CONFIGURATION: 2-pole Form A (Hi, Lo). CONNECTOR TYPE: Screw terminal, #16AWG maximum wire size, with .092 inch O.D. 28 conductors per card maximum. #22AWG typical wire size with .062 inch O.D. 88 conductors per card maximum. MAXIMUM SIGNAL LEVEL: DC Signals: 110V DC between any two pins, 1A switched. 30VA (resistive load). AC Signals: 125V rms and 175V AC peak, between any two pins, 1A switched, 60VA (resistive load). COMMON MODE VOLTAGE: 175V peak, any pin to chassis. (Keithley 7013-s 20-chan isolated switch card is the responsibility of Tyler Carter) |
