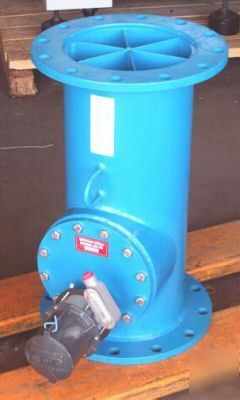

MCCROMETER MW510 FLOW METER WITH MODEL E7000 ANALOG TRANSMITTER (063005500360) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! McCrometer MW510 Flow Meter with Model E7000 Analog Transmitter * Model Number: MW510 with E7000-000 Transmitter * Overall Diameter of Valve: 16†* Overall Width including Transmitter: 21 ¾†* Center Bolt Hole to Center Bolt Hole Diameter: 14 ¼†* Impellers are manufactured of high-impact plastic, capable of retaining their shape and accuracy over the life of the meter. Each impeller is individually calibrated at the factory to accommodate the use of any standard McCrometer register. The MW500 and MZ500 can be field-serviced without the need for factory recalibration. Factory lubricated stainless steel bearings are used to support the impeller shaft. The shielded bearing design limits the entry of materials and fluids into the bearing chamber providing maximum bearing protection. * The instantaneous flowrate indicator is standard and available in gallons per minute, cubic feet per second, liters per second and other units. The register is driven by a flexible steel cable encased within a protective vinyl liner. The register housing protects both the register and cable drive system from moisture while allowing clear reading of the flowrate indicator and totalizer. McCrometer propeller meter is the most widely used flow meter for municipal and wastewater treatment applications as well as agricultural and turf irrigation measurement. Typical applications include: * Water and wastewater management * Sprinkler irrigation systems * Golf course and park water management * Gravity turnouts from underground pipelines * Bearing Assembly: Impeller shaft is 316 stainless steel. Ball bearings are 440C stainless steel. * Magnets: (Permanent type) Cast or sintered Alnico * Bearing Housing: Brass or Stainless Steel * Register: An instantaneous flowrate indicator and six-digit straight-reading totalizer are standard. The register is hermetically sealed within a die cast aluminum case. This protective housing includes a domed acrylic lens and hinged cover with locking hasp. * Impeller: Impellers are manufactured of high-impact plastic, retaining their shape and accuracy over the life of the meter. * Accuracy: ±2% of reading guaranteed throughout range. * Maximum Temperature: (Standard Construction) 160°F constant Installation: Standard installation is horizontal mount. If the meter is to be mounted in the vertical position, please advise the factory. A straight run of full pipe the length of five diameters ahead and one diameter behind the meter is the minimum normally recommended. * Meter and Nominal Pipe Size: 10 * Maximum Flow U.S. GPM: 1800 * Minimum Flow U.S. GPM: 125 * Approximate Head Loss in inches at Maximum Flow: 3.75 * Approximate Weight: 200 lbs * Number of Bolts per Flange: 12 McCrometer E7000 Transmitter General Description: * The E7000 transmitter is a single assembly mounted on the flow meter beneath the register assembly. It is contained in an aluminum housing 4.25" in diameter and approximately 2" high. It comes equipped with a standard 1/2" electrical LL19 condulet attached by a brass 1/2" close nipple. * The E7000 uses the mechanical rotation of the flexible drive shaft to turn a magnet assembly generating an electric pulse. The pulse is generated by a rotating magnet assembly that has four or eight magnets placed evenly around the assembly. McCrometer E7000 Transmitter Specifications: * Accuracy: 0.5% over entire range * Operation Temperature: 25 to 130 ° Fahrenheit * Supply Voltage: 16 to 40 VDC, Nominal 24 VDC, Minimum 25mA * Maximum Resistive Load = 1200 Ohms * (Power Supply Voltage - 16 VDC)/20 mA - Example: (40 VDC - 16 VDC)/20 mA = 1200 Ohms * Temperature Coefficient: +/- 1% Over Entire Temperature Range (Mccrometer MW510 flow meter & E7000 analog transmitter is the responsibility of Herbert Shaw) |
