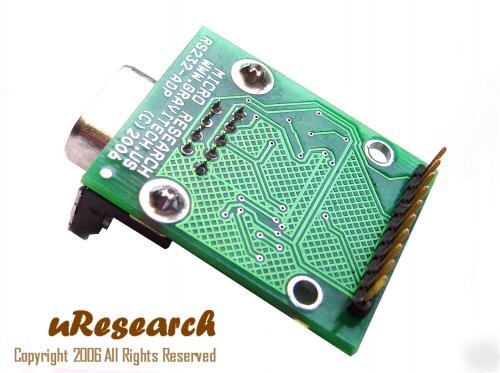

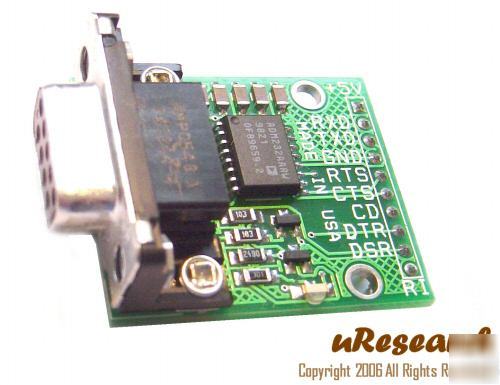

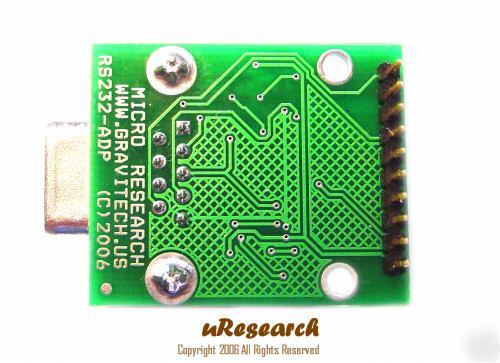

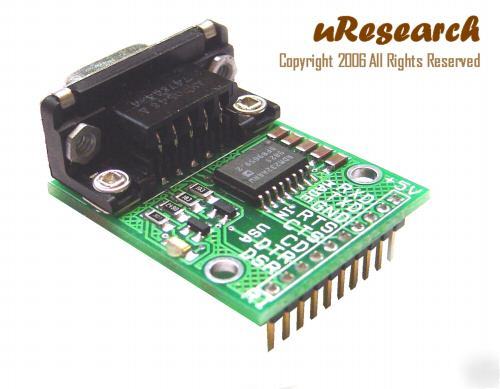

This board features innovations that set it apart from other RS232 Adapter boards. Innovations feature like RXD and TXD status LEDs. Quick and easy connect that you can plug directly on to the breadboard. The board is small and compact in size 1.50 x 1.25 inches. The TX and RX pins from the RS232-ADP can be connected directly to RX and TX pins of your preferred 5V logic microcontroller. You only need to supply 5VDC to the board. The RS232-ADP board is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the computer COM port via a serial DB9 cable. The PC serial port transmits and receives signals at +/-12V while TTL devices including microcontroller operate at +5V and GROUND. In order for you to interface between the two, you’ll need this interfacing circuit. PIN FUNCTION DESCRIPTION SUMMARY TABLE: · Meets all EIA-232-E and V.28 specifications · High speed up to 200 KB/S transmission rate · Operate from a single 5V supply · High quality double sided PCB · -40 to +85 °C operating range · Small and compact in size 1.50 x 1.25 inches. · Full access to all DB9 interface pins For more information please see: RS232-ADP User Manual “This is sold fully assembled and tested†Items included for this action: · Product will be carefully packed with antistatic material. · For optional Serial cable, please add $3.99 at the checkout. (Breadboard RS232 serial uart to ttl converter adapter is the responsibility of Robin Chen) |
Robin-chen@cedar--rapids.com (Robin Chen) for more information.
