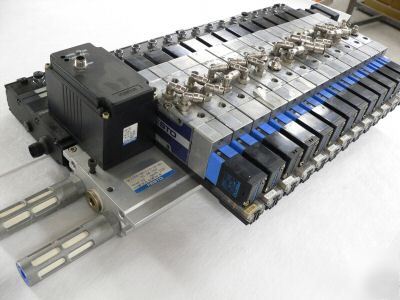

Festo Tiger Valve Sensor Manifold - 16 position manifold it has 3 blanks installed, and 13 5-way 1/4", 2 solenoid valves JMVH-5-1/4, B-V1, 19136, 29-145 psi solenoids are labelled: MSV-3, 119 807, 20.4-26.4V DC, 2.5W IP 00/65 part number info on manifold itself is: IIFG-02-1/4-16-BU, TN 18 763, max 145 psi, series BB 09.92. 467, 24V DC RS485 Interface part number is: VSB-202, 115343, HW 03.02.92, SW V3.D, series BB 1192 By my count it has 36 output input/output connections - see the photos Exhaust mufflers are installed, I have the connectors for the input/output connectors if you are interested. Here is a a link to the manufacturer's pdf on this series of valve terminals http://a1989.g.akamai.net/f/1989/7101/3d/ /INetDomino/files_01/TigerTerminals.pdf (Festo tiger valve sensor manifold terminal 24V 16 posn is the responsibility of Bridgett Hart) |
bridgett_hart@cedar--rapids.com (Bridgett Hart)
for more information.
