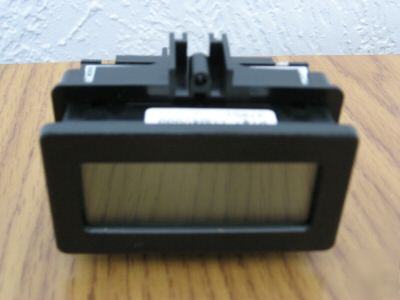

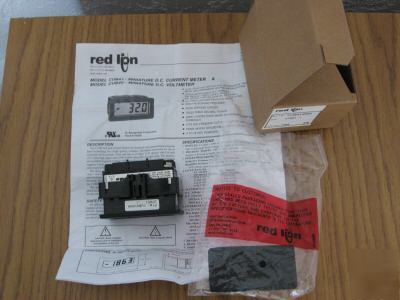

MODEL CUB4V - MINIATURE D.C. VOLTMETER LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE WITH YELLOW/GREEN OR RED BACKLIGHTING 0 to 199.9 mV, 1.999 V, 19.99 V, 199.9 V (CUB4V) 0 to 199.9 μA, 1.999 mA, 19.99 mA, 199.9 mA (CUB4I) 0.6 INCH (15.2 mm) HIGH LCD DIGITS WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE FITS DIN STANDARD CUT-OUT 2.68" (68 mm) x 1.30" (33 mm) NEMA 4X/IP65 SEALED FRONT PANEL BEZEL The optional Micro Line/Sensor Power Supply (MLPS1000) is designed to attach to the rear of an installed CUB4V or CUB4I to provide the necessary power for the unit. The optional supply can be powered from a 85-250 VAC source. DISPLAY: 3½-digit (-1999 to 1999), 0.6" (15.2 mm) high digits. Minus (-) sign is displayed when voltage or current is negative. DECIMALPOINTS: DIP switch selectable decimal points allow the display to be read in tenths, hundredths or thousandths. : 9 to 28 VDC @ 35 mA typ., 50 mA max. Above 26 VDC, derate operating temperature to 50°C. (DIP Switch Selectable) (JMPR. Selectable) ACCURACY: (@ 23°C, less than 85% RH) 199.9 μA, 1.999 mA, 19.99 mA ranges OVERRANGE RATINGS, PROTECTION & INDICATION: 9 to 28 VDC power circuit is not isolated from the signal circuit. : Overrange is indicated by a “1†displayed in the most significant digit and the blanking of the three least significant digits. READING RATE: 2.5 readings per second RESPONSE TIME: 1.5 seconds to settle for a step change NORMAL MODE REJECTION: 60 dB 50/60 Hz (Red lion CUB4V000 miniature d.c. voltmeter is the responsibility of Angeline Fitzgerald) |
