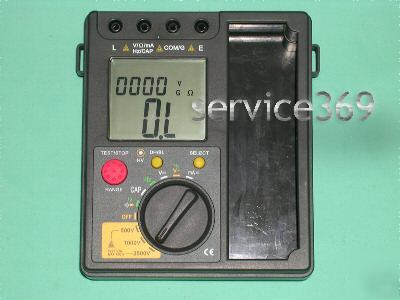

Digital insulation measurement & Digital multimeter Insulation resistance meter, megger, 40G OHM Auto power off ( multimeter only ) Function characters Indication Insulation resistance & measure voltage, two are show together on the LCD display Insulation resistance: 400k ~40GΩ Accuracy: 400k~200M : ±3%+5digit, 200M~ 4GΩ: ±5%+5digit, 4G~ 40GΩ: ±10%+5digit Measurement voltage：500V/ 1000V/ 2500V Short circuit current : 1.5mA or more Measurement time : 1/ 2/ 10min DCV : 400m/ 4/ 40/ 400V ±0.5%+5digit, 1000V ±0.8%+5digit ACV : 4/ 40/ 400V ±0.8%+5digit , 700V ±1%+5digit DCA : 40 mA/ 400mA ±0.8%+5digit ACA : 40 mA/ 400mA ±1%+5digit RESISTANCE : 400/ 4k/ 40k/ 400kΩ ±0.8%+5digit, 4MΩ ±1%+3digit, 40MΩ ±2%+3digit CAP：40n/ 400n/ 4u/ 40 uF ±3%+5digit FREQ : 40/ 400/ 4k / 40k/ 400k/ 4MHz ±0.5%+3digit Diode test : max. 1.8 volt Continuity test : less than 380 OHM, turn on the buzzer 1.5V AA size Battery x 6 ( included ) (Insulation resistance meter, megger, 40G ohm------usa is the responsibility of Alma Tucker) |
