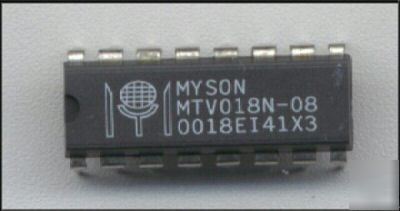

Now over 1,400 items in our Store! * Horizontal sync input may be up to 120 KHz. * On-chip PLL circuitry up to 96 MHz. * Programmable horizontal resolutions up to 1524 dots per display row. * 942 bytes display registers to control full screen display. * Full screen display consists of 15 (rows) by 30 (columns) characters. * 12 x 18 dot matrix per character. * Total 256 characters and graphic fonts including 248 mask ROM fonts and 8 programmable RAM fonts. * 8 color selectable maximum per display character. * Double character height and/or width control. * Programmable positioning for display screen center. * Bordering, shadowing and blinking effect. * Programmable vertical character height (18 to 71 lines) control. * Row to row spacing register to manipulate the constant display height. * 4 programmable background windows with multi-level operation * Software clears for display frame. * Polarity selectable to Hsync and Vsync inputs. * Auto detection for input edge bounce distortion between Hsync and Vsync inputs. * Half tone and fast blanking output. * Software force blank function for external display. * 8 channels 8 bits PWM D/A converters output. * Provide a clock output synchronous to the incoming Hsync for external PWM D/A. * Compatible to SPI bus or I 2C interface with address 7AH (Slave address is mask option) MTV018 is designed for monitor applications to display the built-in characters or fonts onto monitor screen. The display operation is by transferring data and control information from micro controller to RAM through a serial data interface. It can execute full screen display automatically and specific functions such as character bordering, shadowing, blinking, double height and width, font by font color control, frame positioning, frame size control by character height and horizontal display resolution, and windowing effect. Moreover, MTV018 also provide 8 PWM DAC channels with 8 bits resolution and a PWM clock output for external digital to analog control. for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (018 / MTV018N-08 / MTV018N / MTV018 / myson is the responsibility of Alicia Neal) |
alicia.neal@cedar--rapids.com (Alicia Neal) for more information.
