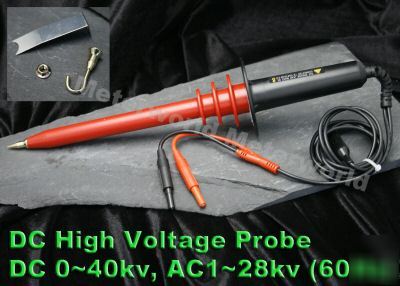

Suitable to test high voltage with mulit-meter or volt meter Input Resistance Approx. 1000M Q Max. Operation Voltage DC: 0-40KV Accuracy DC: +/- 1% to 20KV, +/- 2% to 40KV AC: -5% to -10% ( 1~28KV; 50/60Hz) Temperature coefficient <=200PPM/C Maximum Loading Current <= 40uA(at 40KV DC) Maximum Loading Power <=1.6Watt Ground Lead length 90cm ( 3ft) Output cable length 100cm ( 3.3 ft) Application For DMM higg voltage testing Remark For 10Mohm, input impedance DMM ( accuracy <0.5%) only Connect the plugs to volts(Hi) and com(Lo) input terminals of your Select the desired voltmeter function and range, do not use Whenever possible, turn the high voltage source off before making any Connect the divider probe common lead (alligator clip) to a good earth ground or reliable chassis ground. Do not attempt lo take measurements from sources where the Chassis or return lead is not grounded. This ground connection is critical to the safe operation of the probe. Failure to make this connection when making high voltage measurements may result in personal injury or damage to the probe or voltmeter. This connection must always be made BEFORE the probe tip comes into contact with the high voltage are must not be removed until after the probe tip has been removed from the high Do not connect the ground clip lead to the high voltage source or the probe tip to ground for any reason. Before turning the high voltage on, make sure that no part of your body is in contact with the device under test. Measure the voltage be award you are dealing with the voltage being measured is 1000 times greater than voltmeter reading. Turn the high voltage off. Disconnect the probe tip from the high voltage source BEFORE removing the ground clip lead. Clean only the exterior probe body and cables. Use a soft cotton cloth lightly moistened with a mild solution of detergent and water. Do not allow any portion of the probe to submerged at any time. Dry the probe thoroughly before attempting to make voltage Do not subject the probe to solvent fumes or solvent fumes as these can cause deterioration of the probe body and cables. For warranty parts and service: All purchased are final, will replace defective product only. Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund. Defective item can be exchanged within 7 days of receipt. Replacement and refunds will not be processed until the return item received. (Ac 28KV dc 40KV high voltage probe test for multimeter is the responsibility of Dorothy Burch) |
