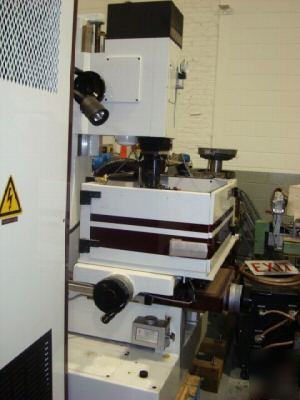

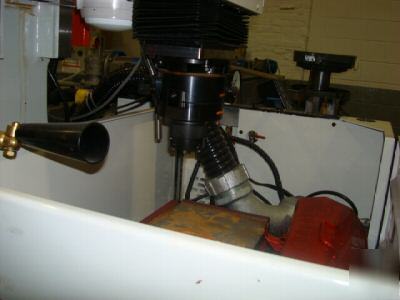

CHEVALIER 50 AMP Z AXIS CNC EDM, MODEL ZPNC-251, MAN. IN 2005, 11 3/16" x 7 7/8" (300 MM x 200 MM) TRAVEL (X & Y AXES), 23 5/8" x 11 3/16" (600 MM x300 MM) WORK TABLE AREA, 5 7/8" (150 MM) QUILL STROKE, 7 7/8" (200 MM) MACHINE HEAD STROKE, 5 7/8"-19 11/16" (250 MM x 500 MM) DISTANCE BETWEEN TABLE & ELECTRODE HOLDER PLATE, 7/8" x 3 1/8" (150 MM x 80 MM) SIZE OF ELECT. HOLDER PLATE, 110 (50) MAX ELECTRODE LOAD, 30 5/16" x 20 1/16" x 10 5/8" (770 MM x 510 MM x270 MM) WORK TANK VOLUME (WxDxH), WIRED AT 220V, 7.46 OPERATING HOURS ON NOVEMBER 16, 2007, NOT CURRENTLY UNDER POWER, SOLD FOR $31,900 WHEN PURCHASED NEW ON AUGUST 5TH, 2005, PHOTOGRAPHS http:// /ChevalierZPNC-251EDM.htm
(2005 chevalier 50 amp edm is the responsibility of Stephen Dunn) |
stephen.dunn@cedar--rapids.com (Stephen Dunn) for more information.
