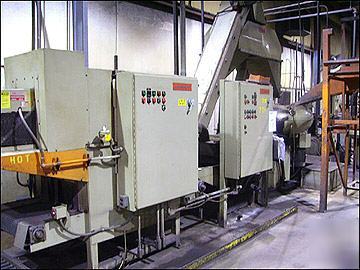

1. FEED SYETEM TO VIBRATORY BOWEL 2. ALEMCO MODEL: OR-20V VIBRATORY BOWEL 3. ALEMCO OS-17A OSCILLATING SCREEN PARTS SEPERATOR 5. IC-17 POWER CONVAYOR TO RECOVER MEDIA 6. VH-131 (2) COMPARTMENT ROTARY HOPPER 7. ALEMCO MODEL: AC2-85DAW FILTER UNIT 8. ALEMCO MODEL: PD18-48E PARTS DRYER * ALEMCO VIBRATORY FINISHING MACHINE WITH BOWL SHAPED TUB AND DISCHARGE DOOR VIBRATION FREQUENCY: 800-1400 (C.P.M.), VARIABLE TUB CROSS SECTION: 17-1/4†DIAMETER * ALEMCO OS-17A OSCILLATING SCREEN PARTS SEPERATOR POSITIVE DRIVEN MECHINICAL VIBRATING SCREANER AND CONVAYOR. IT IS DESIGNED TO RECEIVE THE DISCHARGED PROCESSING LOAD FROM AN ALEMCO VIBRATORY FINISHING MACHINE, SEPARATE THE PARTS FROM THE MEDIA, AND SCREAN THE FINE OR UNDERSIZED CHIPS FROM THE MEDIAL * C-17 POWER CONVAYOR TO RECOVER MEDIA THE INCLINDE POWER CONVAYOR RETURNS THE MEDIAL TO THE HOPPER LOCATED OVER THE VIBRATORY TUB TO DISCHARGE THE MEDIA T0 THE HOIST PAN * ALEMCO MODEL: AC2-85DAW FILTER UNIT * ALEMCO MODEL: PD18-48E PARTS DRYER WET PARTS ARE RECEIVED AT THE LOAD END OF THE MACHINE AND TRANSFURED BY THE CONVAYOR TOWARD THE DISCHARGE END OTF THE DRYER. AS THE WET ARE CARRIED THROUGH WET PARTS, HEATED AIR IS CIRCULATED OVER THE PARTS BY A LARGE CENTRIFUGAL BLOWER. FOR ECONOMY, THE HOT AIR IS RECIRULATED THROUGH THE DRYER SEVERAL TIMES BEFORE IT IS DRAWN OUT BY A SECOND CENTRIFUGAL BLOWER. THE SPEED OT THE CONVAYOU IS INFINITELY VARIABLE AND THE TEMPERATURE BY A THERMOSTATIC CONTROL. ***************INCLUDE APROX. 5 TONS OF MEDIA*************** A Proud Member of the Machinery Dealers National Association. Norman Machine Tool Ltd. Supplying Quality Machinery and Tooling for Over 55 Years!! Member: Machinery Dealers National Association Hours of Operation: Monday - Thursday 9 a.m. to 5 p.m. - Friday - 9 a.m. to 4 p.m. 1311 South Ponca Street - Baltimore, Maryland 21224 Phone (***)-633-2300 or (***)-394-4399 - Fax (***)-633-7737 (Almco 20 cf. vibratory finishing system & separator is the responsibility of Alyssa Franco) |
alyssafranco@cedar--rapids.com (Alyssa Franco) for more information.
