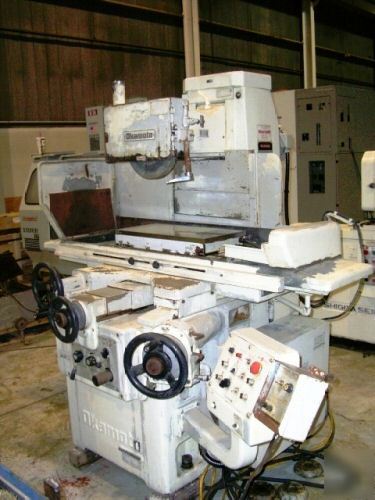

12" X 24" OKAMOTO MODEL 124N ACCUGAR PRECISION HYDRAULIC SURFACE GRINDER Motor Driven with 5 HP, 3-Phase, 60 cycle, 230/460 Volt Grinding Spindle Drive. 2 HP Hydaulic Power Suppy Unit. AC Motor for Downfeed. MD Lubrication. EQUIPPED WITH: 12" x 24" Walker Fine Line Electro Magnetic Chuck and Controls. Incremental (Automatic) Down Feed. Hydraulic Power Longitudinal and Cross Feeds. Power Rapid Wheelhead Elevation. Cross Feed Control. Table Speed Control. Step Feed Control. Coolant Pump & Tank. Working Surface of Chuck 12" X 24" Maximum Longitudinal Travel 29.5" Maximum Cross Travel of Table 13.6" T-Slot(No. x Width) of Table Feeds 3" x .669" LONGITUDINAL MOVEMENT OF TABLE Hydraulic Feed Per Revolution 1 - 100 FPM Hand Feed per Revolution 1.85" Hydraulic Intermittent Feed 0.02" - 0.8" Hydraulic Continuous Feed Per Minute 4 - 40 IPM VERTICAL MOVEMENT OF WHEEL HEAD Automatic Feed Per Table Stroke (OPT) 0.001 - 015" Automatic Feed Per Table Reversal 0.001 - .015" Graduation of Handwheel .0002" Hand Feed Per Revolution 0.05" OD x Width x ID 12" X 1.5" X 5" Spindle Revolution (60Hz) 1800 Please note: The wheel should be replaced before using. (12" x 24" okamoto 124N accugar hyd. surface grinder is the responsibility of Francis Bright) |
francisbright@cedar--rapids.com (Francis Bright) for more information.
