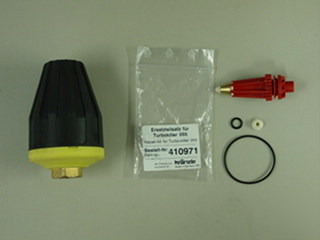

DK Turbo Nozzle Repair Kit for Pressure Washer Available in the following orifice sizes: 3.0, 3.5, 4.5, 5.5, 7.0. Please specify proper orifice size when ordering. Any Questions please call us @ (***)-649-5036. REBUILDING INSTRUCTIONS: (1) Remove cover and unscrew inlet adapter. (2) Remove turbine nozzle and check for clogs. (3) If clogged, clear turbine nozzle re-assemble. (4) To rebuild entire nozzle remove entire contents, to include seat. (5) Put small o-ring on tip of seat with loctite and press seat into tip of nozzle. (6) Change large o-ring on inlet adapter. (7). Drop turbine nozzle into nozzle body and screw inlet adapter on. Back of nozzle turbine should NOT be centered. (8) Put cover back on Dirt Killer.pad (Idk turbo nozzle repair kit for pressure washer is the responsibility of Nadine Fry) |
