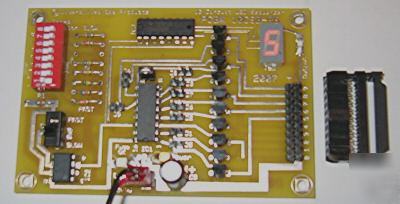

Designed for use in LED Signs to control sequencing of circuits. Output Voltage: same as input, transistor controled, 200ma w/Digital indicator (each) Circuit Control: selectable for 2 to 10 circuits Speed Control: 136 speed, user selectable (aprox 125ms to 3.5 min) (note: this board was designed to control a relay board (our # PCB 10CRB) which load voltage was user defined up to 120vAC. Relay voltage must match board input/output voltage. Each relay (3a or 5a) with proper supply voltage will control aprox (300) 3mm or 5mm LED lights. ) (Led sequencer, 10 circuit (pcb 10CSB-R6) is the responsibility of Bettye Hayden) |
b_hayden@cedar--rapids.com (Bettye Hayden) for more information.
