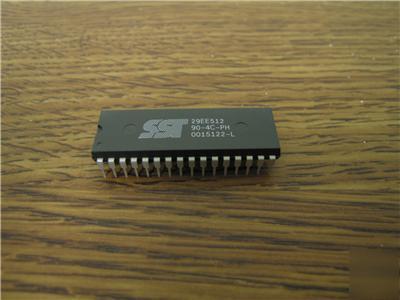

550 SST 29EE512-90-4C-PH 5volt 512K PEROM 32pin DIP NEW This is a BRAND NEW, factory sealed carton from Silicon Storage Technology (SST) which contain: 550 blank bootroms in carton. These are programable. 512K (64kx8), 120ns, 5.0v only, 32 pin DIP PEROM, Reprogrammable many times. 512 Kbit (64K x8) Page-Write EEPROM The SST29EE512 is a 64K x8 CMOS, Page-Write EEPROM manufactured with SST’s proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST29EE512 writes with a single power supply. Internal Erase/Program is transparent to the user. The SST29EE512 conforms to JEDEC standard pin assignments for byte-wide memories. Featuring high performance Page-Write, the SST29EE512 provides a typical Byte-Write time of 39 µsec. The entire memory, i.e., 64 KByte, can be written page-by-page in as little as 2.5 seconds, when using interface features such as Toggle Bit or Data# Polling to indicate the completion of a Write cycle. To protect against inadvertent write, the SST29EE512 have on-chip hardware and Software Data Protection schemes. Designed, manufactured, and tested for a wide spectrum of applications, the SST29EE512 is offered with a guaranteed Page-Write endurance of 10,000 cycles. Data retention is rated at greater than 100 years. The SST29EE512 is suited for applications that require convenient and economical updating of program, configuration, or data memory. For all system applications, the SST29EE512 significantly improves performance and reliability, while lowering power consumption. The SST29EE512 improves flexibility while lowering the cost for program, data, and configuration storage applications. We also accept Money Orders, Cheque and electronic bank transfers. Ontario residents responsible for applicable sales tax: PST (8%) & GST (6%). Other Canadian residents responsible for GST (6%) sales tax's as applicable. Canada Post Delivery Services offered: Call us or email us your address for a quote * Tracking number are provided with these services. All Warranties on the products sold are from the manufacturer. 13-3120 Rutherford Road, Suite 317 Tel: 1-(***)-842-8486 (Toll free USA & Canada) Office Hours - our sales staff are avialable to assist you 10am to 4pm EST (Toronto / New York Time) Certain images/photos are the copyrighted property of JupiterImages and are used with permission under license. (New 550 sst 29EE512-90-4C-ph 5VOLT 512K perom 32PIN dip is the responsibility of Russell Cleveland) |
russell_cleveland@cedar--rapids.com (Russell Cleveland) for more information.
