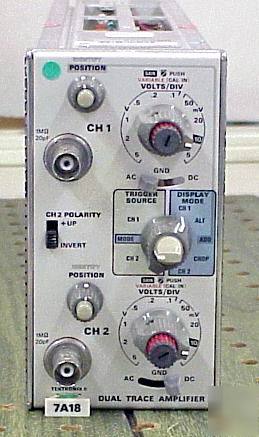

Tektronix TEK 7A18 Dual-Trace Amplifier Plug-In Tektronix TEK 7A18 Dual-Trace Amplifier Plug-In The 7A18 Dual-Trace Plug-In Amplifier is the basic building block of 3-trace and 4-trace operation. The unit features constant bandwidth for all deflection factors, 5 operating modes (Ch1, Ch2, ALT, CHOP, and ADD), trigger source selectivity and color-keyed control grouping. * Polarity of Channel 2 is selectable * Deflection Factor: 5 mV/div to 5 V/div * Input R and C: 1 MW within 2%; approx. 20 pF (Tektronix tek 7A18 dual-trace amplifier plug-in is the responsibility of Althea Holder) |
Althea-holder@cedar--rapids.com (Althea Holder)
for more information.
