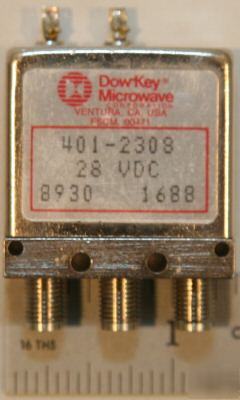

Dow-Key SPDT Failsafe SMA Switch DC-18 GHz Model 401-2308 Removed From Equipment - Untested Dow-Key 401-2308 Specifications: * Frequency Range: DC to 18.0 GHz * VSWR (Max), DC-1 GHz: 1.10:1 * VSWR (Max), 1-4 GHz: 1.15:1 * VSWR (Max), 4-8 GHz: 1.2:1 * VSWR (Max), 8-12 GHz: 1.3:1 * VSWR (Max), 12-18 GHz: 1.35:1 * Isolation (Min), DC-1 GHz: 85 dB * Isolation (Min), 1-4 GHz: 80 dB * Isolation (Min), 4-8 GHz: 70 dB * Isolation (Min), 8-12 GHz: 65 dB * Isolation (Min), 12-18 GHz: 60 dB * Insertion Loss (Max), DC-1 GHz: 0.1 dB * Insertion Loss (Max), 1-4 GHz: 0.15 dB * Insertion Loss (Max), 4-8 GHz: 0.2 dB * Insertion Loss (Max), 8-12 GHz: 0.3 dB * Insertion Loss (Max), 12-18 GHz: 0.35 dB * Switching Time: 15 mS Maximum * RF Termination (inactive port): Reflective, Open Dow-Key 401 Series Failsafe Data Sheet * Combining 'Small' items with other purchases is at the same rate of $1.50 for each additional 'Small' item. (Dow-key spdt sma switch dc-18 ghz type 401-2308 is the responsibility of Patsy Lindsay) |
