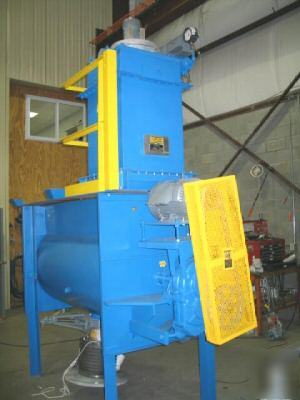

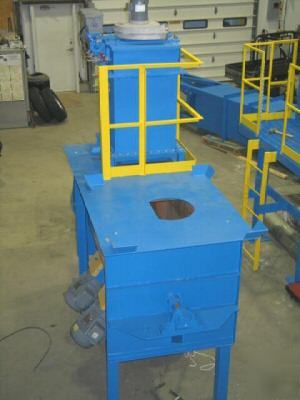

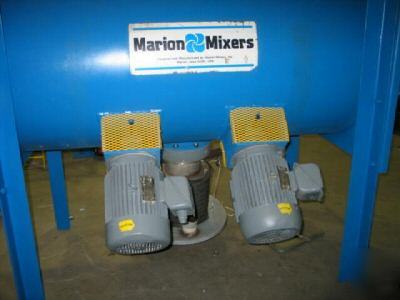

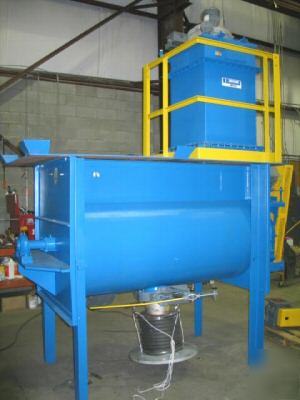

CARBON STEEL CONSTRUCTION. SEMI CYLINDRICAL DESIGN. Serial Number 3234-26932 One – Model SPC 3672 Semi-cylindrical Marion Batch Mixer, carbon steel, 36" dia. x 6’ – 0"; 34 cu. ft. mixing capacity. ¼" trough rolled through 300 degrees, ¼" ends; 2-7/8" dia. shaft with bolted arms/adjustable paddle blades; pillow block ball bearings Style E adjustable stuffing box shaft seals, air-purged type, TFE/synthetic packing Liquid addition manifold (1" IPS) with three (3) 1/4VVSS4010 spray nozzles 8" manual knife gate valve, with lever operator ½" thick. Gasketed cover, with grated opening for charging blender Structural legs 20 Hp TEFC motor, 3P, 60Hz, 1800 rpm, 230/460V, frame #256T 3B V-belt drive, 6.6/12.4" BP-belts Dodge TXT-625 shaft-mounted reducer, 25.13 ratio, class I at 37.1 rpm output; right hand drive arrangement Top motor mount Expanded metal guard over V-belt drive Two (2) 10 hp Marion Chopper assemblies, including: Threaded removable drive shaft extension with slinger and guard, Style E adjustable stuffing box shaft seals, air-purged type, TFE / graphite packing; 10 hp 3600 rpm, C-flanged TEFC motor, 3P, 60Hz, 230/460V, with modified shaft; choppers mounted down sweep side of mixer trough. Complete with optional dust collector and fan. (34 cubic foot marion paddle mixer carbon steel (3234) is the responsibility of Juana Flowers) |
j.flowers@cedar--rapids.com (Juana Flowers) for more information.
