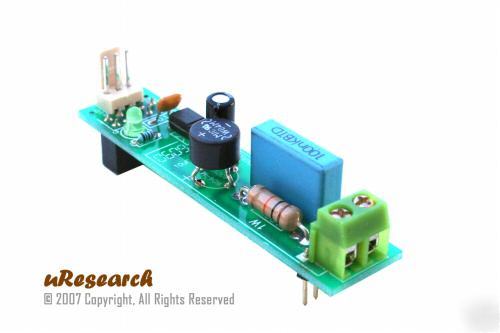

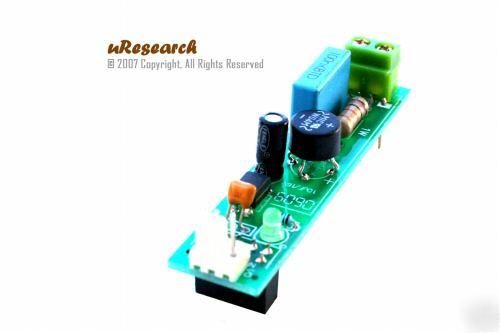

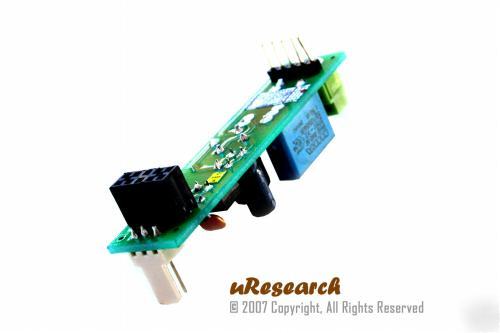

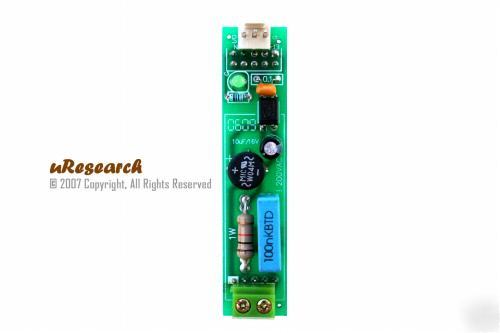

The board can be use with MR-BusIO-MAIN board or stand-alone. PCB size is 0.63†x 2.80†The PC817 require at least 5mA to drive input photo-coupler LED. It can take up to 6V in reverse bias. For an output (between collector and emitter), it can drive up to 35V with 50mA continuous current. The operation of this board starts when it’s receiving input 110-220VAC via 2-PIN terminal. The current is flowing through 0.1uF 250V capacitor and 100Kohm 1W resistor. The circuit acts as a Capacitive Reactance which reduce the input AC voltage. The benefit of this circuit is to reducing the heat of the resistor. The current then flow into bridge rectifier circuit and activate PC817 circuit. The I/O pin then becomes a logic LOW and an indicator LED is illuminated User can use this board to detect AC voltage. For more information please see: MR-BusIO-ACIN User Manual “This is sold fully assembled and tested†For more exciting products please visit WWW.MICRORESEARCH.US (Busio-acin (busio ac input) basic stamp, pic, atmel is the responsibility of Peter Lara) |
plara@cedar--rapids.com (Peter Lara) for more information.
