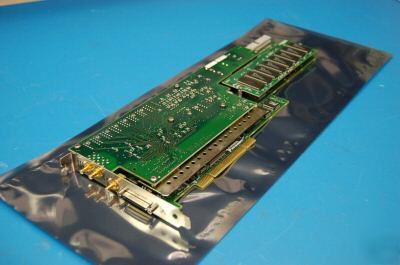

Click on picture for a larger image. National Instruments DAQArb PCI-5411 40 MS/s Arbitrary Waveform Generator • One 12-bit resolution analog output channel • Up to 16 MHz sine and TTL waveform output • Software selectable output impedances of 50 W and 75 W • Output attenuation levels from 0 to 73 dB • Phase-locked loop (PLL) synchronization to external clocks • Sampling rate of 610 S/s to 40 MS/s • 2,000,000-sample onboard waveform memory • Waveform linking and looping for arbitrary waveform generation • 32-bit direct digital synthesis (DDS) for standard function generation • Marker output as trigger output • 16-bit digital pattern generation with clock • Real-Time System Integration (RTSI) triggers For a link to the users manual: click here Drivers for this card can be found: Here Some general info from NI's site: The National Instruments PCI-5411 High-Speed Arbitrary Waveform Generator: Signal Sources (AWG/FG/AO), Operation Modes: Standard Function, Frequency List, Arbitrary Waveform, Arbitrary Sequence. Waveform: Sine, Square, Triangle, Ramp Up, Ramp Down, DC, Noise, User-Defined. Maximum Frequency: Sine: 16 MHz, Other: 1 MHz. SYNC Duty Cycle: 20% to 80%. Up to 40 MS/s Sample Rate. You can synchronize the NI 5401/5411/5431 in Standard Function mode as long as it is unnecessary to change the phase between devices while generating. Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold untested and is guaranteed NON-DOA with a 7 day ROR. CO STATE RESIDENTS: All items won by Colorado residents will be subject to 6.7% sales tax. (National instruments daqarb pci-5411 40MS/s 16MHZ arb is the responsibility of Winnie Zamora) |
winnie-zamora@cedar--rapids.com (Winnie Zamora) for more information.
