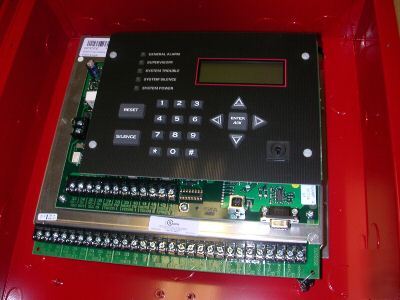

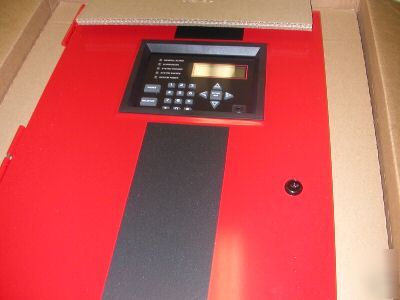

• Up to 508 addressable points • Uses standard wire—no shielded or twisted pair required • Built-in digital communicator • Central station reporting by point or by zone • Built-in synchronization for appliances from AMSECO®, Gentex®, Faraday, System Sensor, and Wheelock® • Supports Class B (Style 4) and Class A (Style 6) configuration for SLC, SBUS, and Flexput circuits • Distributed, intelligent power • 13 pre-programmed output cadences (including ANSI-3.41) and 4 programmable outputs • Built-in annunciator with 80-character LCD display • RS-485 bus provides communication to system accessories • Built-in RS-232 and USB interface for programming via PC • Built-in Form C trouble relay rated at 2.5 amps at 27.4 VDC • Improvements in SKSS software deliver five times faster uploads/downloads • Two built-in Form C programmable relays rated at 2.5 amps at 27.4 VDC. • 6 amp power supply and maximum charging capacity of 35 amp hours (An additional cabinet enclosure is required for batteries in excess of 18 amp hours) • Programmable date setting for Daylight Saving Time • Plex-1 door option combines a dead front cabinet door with a clear window, limiting access to the panel while providing single button operation of the reset and silence functions (Silent knight 5820XL addressable fire alarm control is the responsibility of Teresa Ware) |
t.ware@cedar--rapids.com (Teresa Ware) for more information.
