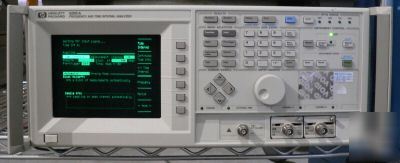

HP 5372A Frequency and Time Interval Analyzer With Qty 2 ea 54002A Active Probe Input Modules Excellent Physical & Electrical Condition Comes With 7 Day Return Policy if Not Completely Satisfied The Agilent 5372A modulation domain analyzer, a superset of the 5371A, captures frequency, phase, or time intervals at extremely high speeds. The 5372A can make up to 13.3 million measurements per second for signals with a frequency range of up to 500 MHz. An optional channel expands the range to 2 GHz. The 5372A combines a choice of over 60 arming and triggering configurations with built-in analysis functions including math, statistics, and limit testing. Unique to the 5372A (compared with the 5371A) are deeper memory, hardware histograms, and FFT capabilities for high-performance and more sophisticated jitter spectrum analysis and phase noise studies. The 5372A lets you: analyze jitter effects, characterize the transient and steady state responses of a VCO, examine frequency or phase modulation, measure frequency stability, analyze computer peripherals, or measure fast hopping radio signals. * Broad selection of measurements * Quick and easy-to-use push button analysis * Graphic display and histograms for added visual meaning from collected data * 200 ps single-shot, Least Significant Digit (LSD), 10 digits/second for frequency measurements (2 ps LSD for averaged measurements) For More Information See: http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&pageMode=OV&pid=1000001410%3Aepsg%3Apro&ct=PRODUCT&id=1000001410%3Aepsg%3Apro (Hp 5372A frequency and time interval analyzer, 2 54002A is the responsibility of Peggy Morales) |
