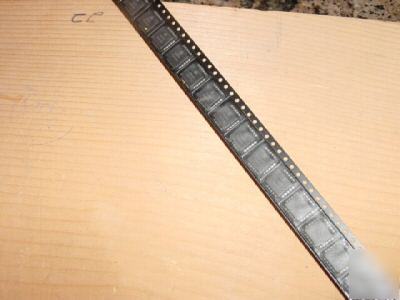

This item includes the following item: 20 pcs. Motorola # MC10E150FN. (PLCC Package). As always, we will are willing to look at all Best offers! Please note that we will also consider offers on different quantities than we have posted! The MC10E/100E150 contains six D-type latches with differential outputs. When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent and input data transitions propagate through to the output. A logic HIGH on either LEN1 or LEN2 (or both) latches the data. The Master Reset (MR) overrides all other controls to set the Q outputs low. The 100 Series contains temperature compensation. * 800ps Max. Propagation Delay * PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V * NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V * Internal Input Pulldown Resistors * ESD Protection: > 1 kV HBM, > 75 V MM * Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test * Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D * Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34 * Transistor Count = 173 devices (20 pcs motorola # MC10E150FN, bbg ecl latch 6BIT, plcc is the responsibility of Lance Neal) |
Lance.Neal@cedar--rapids.com (Lance Neal) for more information.
