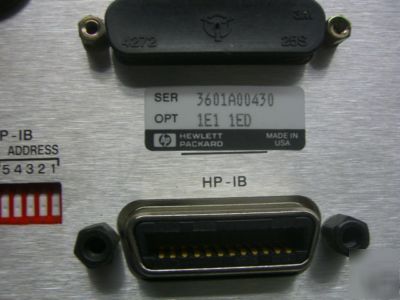

1ED = N type output connector. Agilent Technologies 83752B : Main Features and Specifications Agilent Technologies 83752B Frequency Range Min. 10.0 MHz Frequency Range Max. 20.0 GHz Max. Output Power 17 dBm Step Mode: Max. Number of Points 1601 pt/sec Step Mode: Dwell Time - Ramp Mode: Max. Sweep Rate 70 ms(frequency switching time) Alternative E8257D-520 Frequency Range from 250 kHz to 20 GHz See also 83751A , 83751B , 83752A Visit Agilent Technologies web site for more info about 83752B Agilent Technologies 83752B Specs (163.1 KB) Agilent Technologies 83752B Features : The Agilent 83752B sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent. * Fully phase locked analog sweep for accuracy and speed * Flat and accurate output power to characterize the linear response of the test device * Offset frequency sweep for mixer test * Agilent 8350 programming mode for backwards (Hp 83752B /1E1/1ED .01-20GHZ hi power sweeper is the responsibility of Lydia Murphy) |
l.murphy@cedar--rapids.com (Lydia Murphy) for more information.
