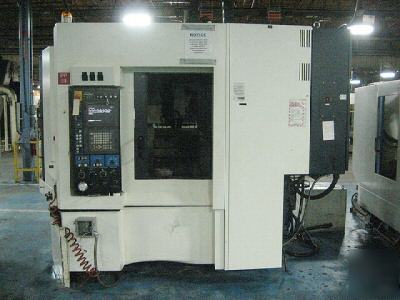

MAKINO S33 CNC VERTICAL MACHINING CENTER WITH PALLET CHANGER Axes travel (X, Y, Z) (S33 std. and APC) 25.59" x 19.68" x 17.72" Extended stroke (S56) 26.77" x 19.68" x 17.72" Table top to spindle face 5.9" - 23.63" Pallet top to spindle face (APC m/c) 4.72" - 22.44" Rapid traverse (X, Y) 1,574.8 in/min. Axis feed rate 1 - 1574.8 in/min. Maximum work size on pallet L x D x H 26.77" x 15.75" x 16.56" Size of pallet (APC m/c) 26.77" x 15.75" Spindle power 15 min./cont. 29.5/24.14 HP Maximum torque (15 min./cont.) 1035.5/840.8 lbf-in Spindle nose MAS 403-BT40/DIN 69871-A40 / JIS B6339-40T Spindle oil cooling system Jacket cooling Tool change time 1.3 Sec tool to tool Max. tool dia 114/76.2mm (ATC20/ATC30) 130mm (with alternate pocket empty) Changing method Hydraulic driven rotary arm Coolant pump - Nozzle coolant / Work washing gun 1.2 HP Coolant pump - Coolant flush 2.1 HP Coolant pump - Shower coolant 1.2 HP Coolant pump - Through spindle coolant - 1.0 Mpa 3.0 HP Coolant pump - Through spindle coolant - 2.5 Mpa 4.4 HP Chip conveyor - Lift up type (left or right) 1.5 HP Chip conveyor - Central trough scrapper type 1.5 HP Cutting Chip Disposal Options: Pressure (at the pump) 217 PSI Standard (W x D) 91.5" x 106.8" With APC (W x D) 91.5" x 131.8" Machine weight: Standard 16,094 lbs. Fanuc Professional 3 CNC controls (Fanuc 16i) 30 Position automatic tool changer Power on spindle run hour meter (#9753 - makino S33 cnc vertical machining center is the responsibility of Dionne Hayes) |
