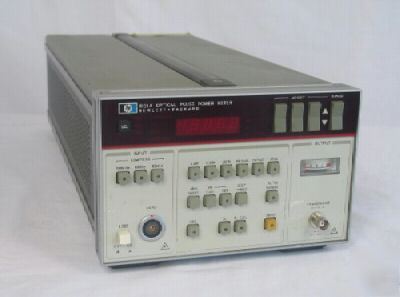

Technology Equipment Corp is a global dealer of new and used high-tech equipment, parts & materials, including fiber optics, test equipment, semiconductor manufacturing instrumentation, laboratory, microscopes, metrology, and more. Agilent/HP Optical Power Meter 8151A Used Model/Part No:8151A Our Item ID: 2637 Agilent/HP 8151A Optical Power Meter.O/E transducer capability Enables the user to accurately determine upper and lower peak power levels Instrument's transducer has a frequency range of 250MHz, and outputs an electrical signal which corresponds directly to the optical input waveform The HP 8151A cannot be operated without an optical head. All heads carry interface adapters for fiber connectors and bare fibers. Wavelength Range: 900 to 1725nm, cal for 1300nm Maximum Core Diameter: 100µm Parameters Measured: high, low, and mesial power levels, amplitude, extinction ratio, average power Measurement Range: 0dBm to -50 dBm Resolution: 3 digits (Watts), 1pW min.; 4 digits (dB), 0.01dB min. Transducer (opto-electric conversion) Actual waveform depends on measurement range. Calibrated for 1300nm. Transition Time: < 3ns Perturbations: < 10% of amplitude HP-IB capability Power: 100 / 120 / 220 / 240 Vrms Requires optical adapter to connect to cable or DUT Item Tested?: Physical Condition: Good; Working Condition: Fully Functional17 | 24x 12x10 | 1 18409 N. Cave Creek Rd., Suite 2-401 (Hp agilent 8151A optical power meter is the responsibility of Jeannie Jarvis) |
Jeannie_Jarvis@cedar--rapids.com (Jeannie Jarvis) for more information.
