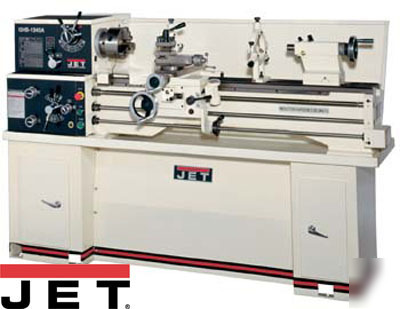

This Jet 321357A GHB-1340A 13" Swing 40" Centers 2HP 1Ph 230V Geared Head Engine Bench Lathe WITH STAND Note: Liftgate Service is not included! If you need Liftgate Service you will need to arrange Liftgate Service with the trucking company. You will be able to arrange Liftgate Service with the trucking company as soon as we e-mail you with the tracking information! Tool Zone, Inc. WILL NOT PAY FOR LIFTGATE SERVICE ! Jet GHB-1340A Lathe Features: • One of JET's most popular lathes now comes with an enclosed gearbox as a standard feature • Enclosed gearbox design provides smooth, quite operation • Hardened and ground gears are featured in the headstock and gearbox • Dl-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings • Headstock is constantly oiled during operation • Gear box gives wide inch threading and feed capabilities with no gear changes • V-way bed design is induction hardened and ground • Gap bed section provided for larger diameter work • Independent leadscrew and feed rod • Spindle actuation control is apron mounted • Compound and cross slide have backlash elimination • Adjustable gibs are incorporated in the carriage and slideways • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill • Tolerance test certificate included • 6†3-Jaw Direct Mount Chuck with Top Reversing Jaws • Centers and Headstock Center Sleeve Jet GHB-1340A Lathe Specifications: • Swing Over Cross Slide (in.): 7-25/32 • Distance Between Centers (in.): 40 • Hole Through Spindle (in.): 1-3/8 • Spindle Taper (with Sleeve): MT-5(MT-3) • Number Of Spindle Speeds: 8 • Range Of Spindle Speeds (RPM): 70-2,000 • Number of Longitudinal and Cross Feeds: 40 • Range Of Longitudinal Feeds (in./rev): .0036 - .1005 • Range of Cross Feeds (in./rev.): .0012 - .0345 • Number Of Inch Threads: 40 • Range Of Inch Threads (T.P.I.): 4 - 112 T.P.I. • Number Of Metric Threads: 27 • Range Of Metric Threads (mm): 0.2 - 6 • Max. Tool Size (in.): 5/8 x 5/8 • Compound Slide Travel (in.): 2-11/16 • Cross Slide Travel (in.): 6-5/16 • Tailstock Spindle Travel (in.): 3-3/4 • Taper in Tailstock Spindle: MT-3 • Steady Rest Capacity (in.): 2-5/8 • Follow Rest Capacity (in.): 2-3/4 • Overall Dimension W/ Stand (in./L x W x H): 71 x 32 x 47 • Main Motor: 2HP, 1Ph, 230V Only Jet 2 Year Metalworking Warranty: This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance. Tool Zone Carries a Full Line of Jet Lathe Accessories - Just Call Us At (***) 252-8500 We Can Get You Any Jet Lathe Accessory You Are Looking For! (Jet 321357A 13" swing 40" center gear head lathe pkg is the responsibility of Britney Sawyer) |
