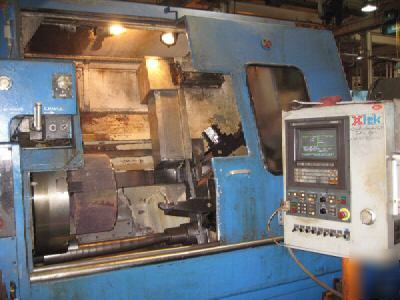

#SC28 WARNER & SWASEY "M4530" 2-AXIS CNC TURRET LATHE Serial 2445539, Model SC28, Series M4530, Allen Bradley 9/Series CNC Control 2-Axis Machine Design - 20-Degree Slant-Bed Design 28" 3-Jaw Cushman Chuck - Power Chuck Wrench 6-Station Cross-Sliding Turret - RS 232 Port #A1-15" American Standard Spindle Nose Hole thru Spindle........................ 6.25" Chuck Diameter........................... 28" Swing Over Bed Ways, Maximum............. 28" Swing 17.75" From Spindle Flange......... 33.75" Turret Longitudinal Travel............... 41" Turret Cross Travel...................... 15.25" Distance Spindle to Turret Face, Max..... 60.25" (32) Spindle Speeds, Range............... 12 to 851 RPM Power Rapid Traverse, Longitudinal....... 250 IPM Power Rapid Traverse, Cross.............. 125 IPM Floor Space Required, L x D.............. 20'4" x 8'6" Motor Horsepower......................... 40/20 HP Electrical System........................ 460/3/60 Weight, Approximately.................... 26800 LBS PRICE: F.O.B. OUR WAREHOUSE.............. $49,500.00 All machines/equipment subject to prior sale. (#SC28 warner & swasey "M4530" 2-axis cnc turret lathe is the responsibility of Norma Trujillo) |
N-Trujillo@cedar--rapids.com (Norma Trujillo) for more information.
