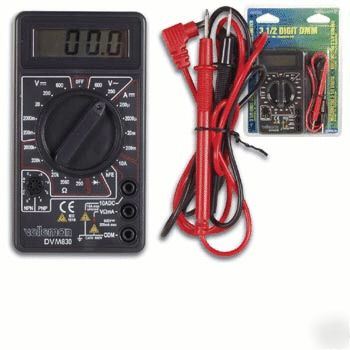

DVM830  3½ DIGIT DMM - 20 RANGES - 10A - TRANSISTOR & DIODE TEST * automatic polarity function * voltage measurements: AC 750V and DC 1000V max. * current measurements: max. 10A * resistance measurements: 2Mohm max. * DC voltage: 200m/2/20/200/1000V * basic accuracy: ± 0.5% * input impedance: 1Mohm * input impedance: 0.45Mohm * frequency range: 45 to 450Hz * maximum input: 750V AC * DC current: 200µ/2m/20m/200m/10A * overload protection: 0.2A fused / 10A not fused * overload protection: - * resistance: 200/2000/20k/200k/2000k * basic accuracy: ± 0.8% * overload protection: 250V * overload protection: - * transistor test: yes 10µA /2.5V * low-battery indication: yes * LCD display size: 1.8" x 0.6" * dimensions: 2.8" x 5.0" x 1.0" * weight (with battery): ± 6.0oz. * accessories: manual / test leads / battery DVM830  3½ DIGIT DMM - 20 RANGES - 10A - TRANSISTOR & DIODE TEST (DVM830 - 3½ digit dmm - 10A , transistor & diode test is the responsibility of Lester George) |
