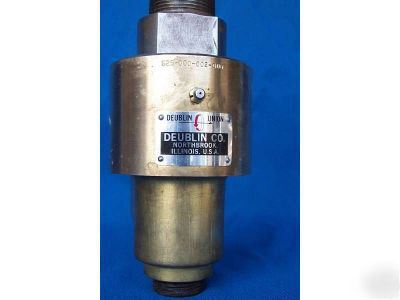

Deublin Co. multi-service rotating joints; 3/4". Transfer water, air, nontoxic industrial gases, or hot oil to and from drums, extruders, embossers, and other rotating equipment. A precision ball bearing absorbs shaft rotation and thrust loads. All joints have a grease fitting. Housing is cast iron to protect internal parts; bellows gasket is copper. Vacuum rating is 20" Hg. Maximum pressure is 250 psi for fluids, 100 psi for air and hot oil. Maximum temperature is 375 deg F for fluids, 350 deg F for air. Maximum speed is 400 rpm. Single flow. One port for one-way flow, either supply or return. List $356.81; wholesale $178.40. Never used. (Deublin co. 3/4" rotating joints -- multi-service is the responsibility of Anita Norris) |
Anita-norris@cedar--rapids.com (Anita Norris)
for more information.
