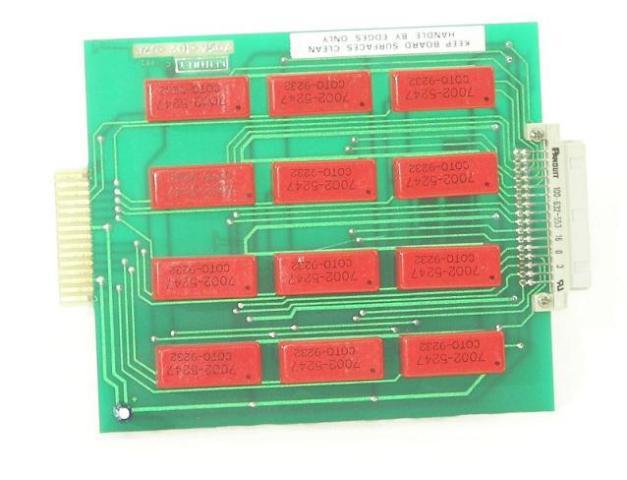

Keithley 7056 General Purpose Scanner Module click on images below to enlarge The Keithley 7056 is a Scanner Card with electrical connection made through a quick disconnect screw terminal card. The Keithley 7056 is a cost-effective and versatile solution to relay switching applications. Each channel of the card has two Form A (SPNO) contacts. The switch may be wired for either 2-pole or 1-pole switching through the selection of the appropriate output. In 1-pole operation, channels HI and LO operate as independent, isolated inputs, thereby effectively doubling the number of input channels. With this card, even and odd numbered channels cannot be closed at the same time in the 20-channel mode. * We offer a 100% Satisfaction Guarantee that the item is as described! * Questions will be answered to the best of our knowledge * PERSONAL CHECKS ARE NOT ACCEPTABLE. * Items can only be returned with prior authorization. Unauthorized returns will not be honored. * Failure to follow these guidelines will invalidate both the return and the guarantee! (Keithley 7056 general purpose scanner module is the responsibility of Rosalinda Bryan) |
